Features:

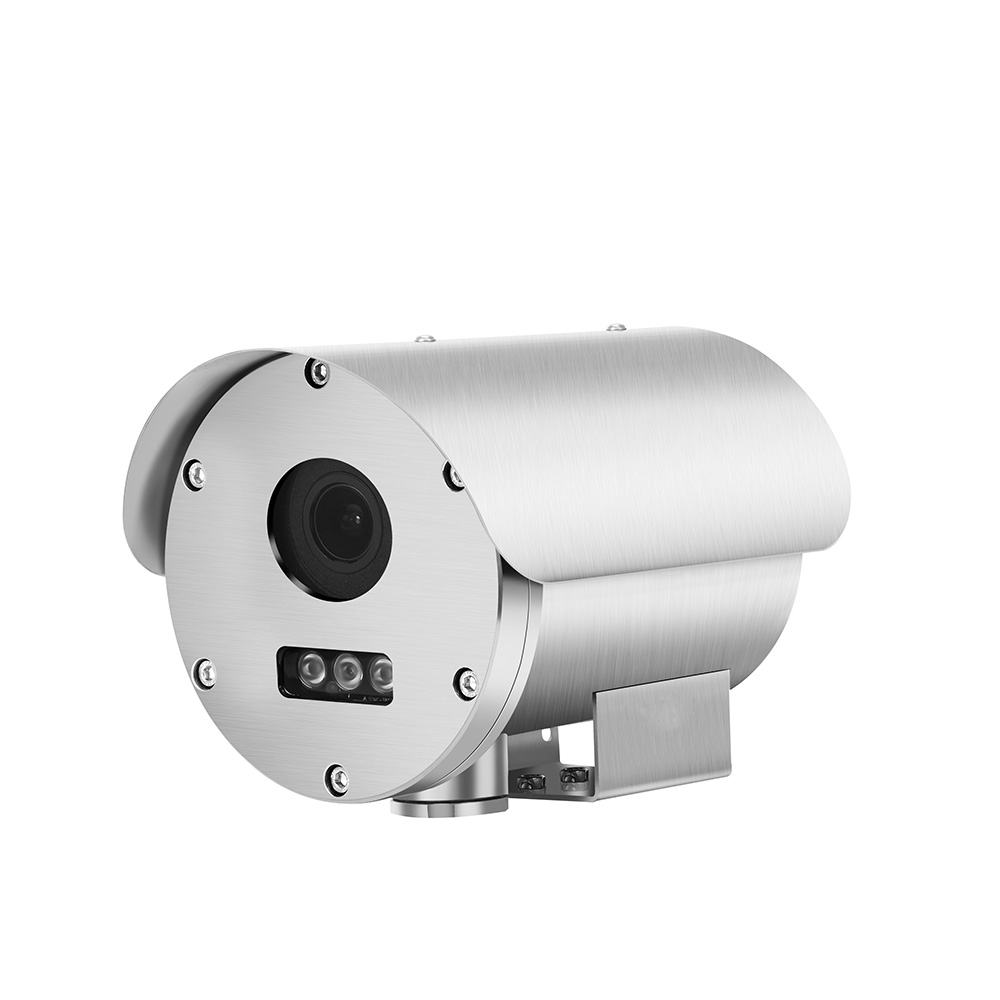

316L Explosion Proof IR HD IP Camera with Audio night vision Outdoor POE
Lens: 4/6mm lens
Temperature: Works effectively in temperatures between -30°C to +80°C
Waterproof protection: IP68 enclosures are Able to protect against powerful water jets which work effectively for marine areas.
Night Vision: Provides clear surveillance during nighttime.
Atex Mark: II 2G Ex db IIC T6 Gb, II 2D Ex tb IIIC(85 degree) Db
IEC Mark: Ex dIIC T6 Gb/DIP A20 TA, T6
Adopt the highest level 316L Stainless Steel Material
2.0M Pixel 1/2.8" CMOS Sensor
30-60M IR Distance
Support Onvif, RJ45 port
Support Audio
DC12V/POE(optional)
Compatible with brand NVRs to make video recording
| Specification | |
| Product Name | 316L Stainless Steel IP Explosion-Proof IR Camera with Audio |
| Model No. | WDM-EX200IPB/316L/A |
| Video | |
| System | High-performance DSP, His3516C+Sony Chip |
| Sensor | 2.0M Pixel 1/2.8" CMOS Sensor |
| Output resolution | 1920(H)×1080(V) |
| D/N Mode | Auto switching,black and white vide and IR cut action linkage |
| Illumination | Color 1.0Lux@F1.2,Black 0.1 Lux@F1.2 |
| Video processing | H.264 video compression, dual streaming |
| AVI format, 0.1M~6Mpbs adjustable; | |
| Video Output | Main streaming:1920*1080, 1280*960, 1280×720,1024×768,1280×720; Sub streaming: 960×540,640×360,480×270,352×288,320×240,352×192, 320×192,288×192,256×192 |
| Frame rate | 2.0MP 25/30 frame(full real time),support 1~30frame/seconds adjustable |
| Network interface | RJ45 ethernet,10/100M;RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP protocol supported |
| Access Protocol | Standard ONVIF Protocol, Support third party access; PC; |
| Support IE6.0 and aboveSmartphone | |
| Support Android\iPhone | |
| Lens | |
| Lens | 4/6mm lens for optional |
| IR distance | 30-60M IR Range, |
| Function | |
| Function | Support Audio Function |
| Support motion detection | |
| Support WEB configuration, OSD,real-time video transmission | |
| Support uniform client and platform system application | |
| Support complete SDK for second development. | |
| Housing Material | |
| explosion-proof housing | 316L stainless steel, polishing passivation treatment, Rust corrosion resistance, never fade |
| Ingress Protection | IP68 |
| Interface spec | G-1/2” |
| Method of installation | bracket mount |
| Atex Mark | II 2G Ex db IIC T6 Gb, II 2D Ex tb IIIC(85 degree) Db |
| IEC Mark | Ex dIIC T6 Gb/DIP A20 TA, T6 |
| Normal | |
| Power supply | DC12V/POE(optional) |
| Working Current | <=1A |
