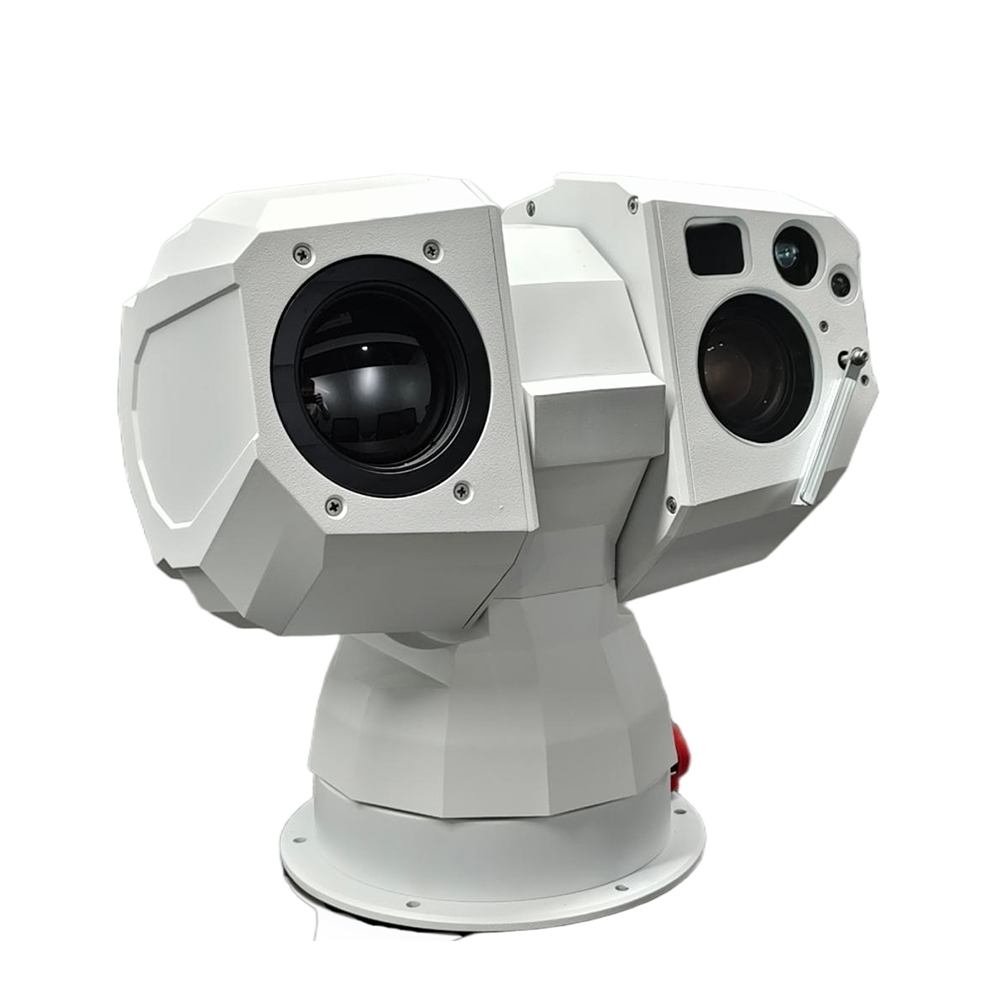

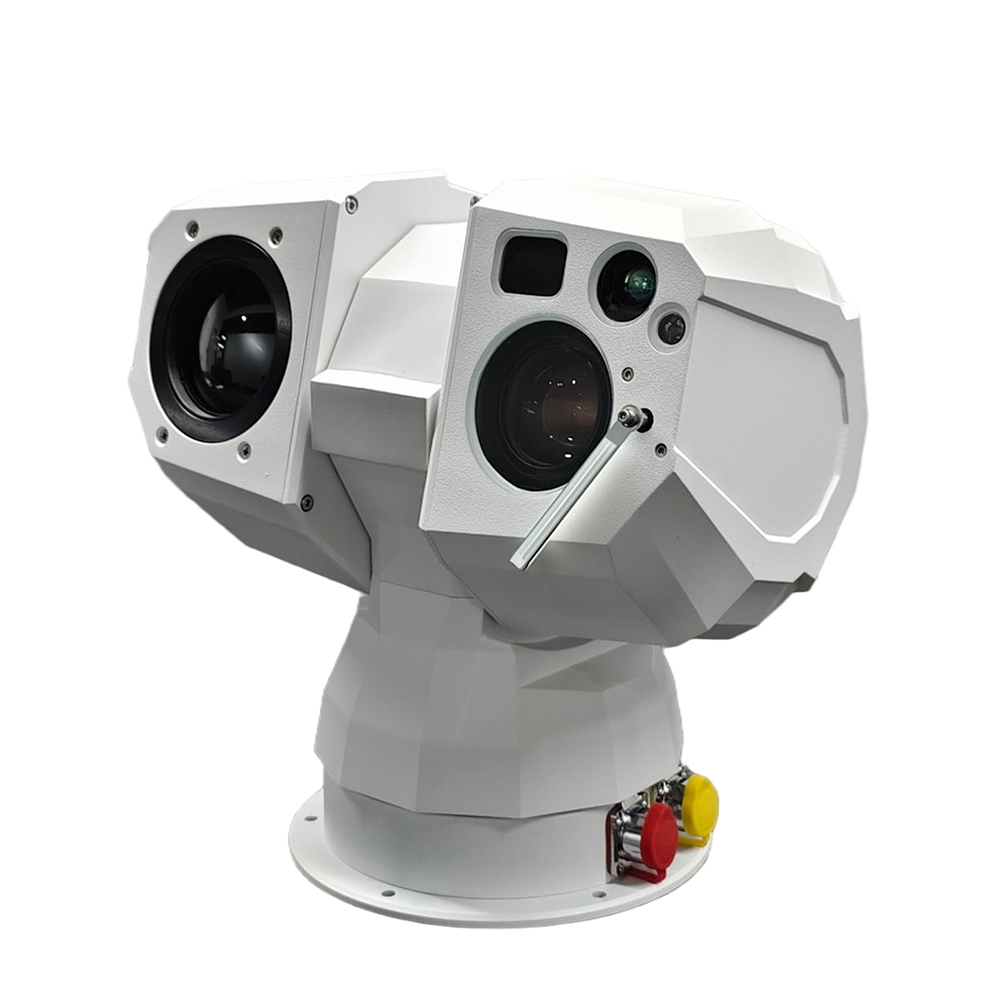

The ultimate AI 5-in-1 Smart PTZ camera For Airports, Railways, Ports, Vessel, Smart Transportation, Drone Detection, Forest Fire Prevention, Border and Coastal Defense

The ultimate AI 5-in-1 Smart PTZ camera For Airports, Railways, Ports, Vessel, Smart Transportation, Drone Detection, Forest Fire Prevention, Border and Coastal Defense

Features:

Wardmay ultimate AI 5-in-1 Smart PTZ camera

Visible camera, thermal camera, rangefinder, laser illumination and wide angle camera, 5-in-1 Integrated System

Direct drive torque motor for high accuracy and fast rotation

Full HD 8 MP 3840x2160@30fps real-time images

10-550mm, 55X optical zoom

Thermal image 640x512, NETD sensitivity≤ 35mK @F1.0,300K

3km laser ranging, 1535nm wavelength

500m laser illumination;

AI-AF deep learning

Supports Onvif, max. 256G Micro SD storage

Inquire Now Next Product

Features

Specifications

8MP 3840x2160@30fps real-time image

Support WebRTC and FLV image preview

Support backlight compensation, automatic electronic shutter and other functions to adapt to different monitoring environments

Support 3D digital noise reduction, strong light suppression, heat wave removal

Support human, non-motor vehicle, motor vehicle, boat and bird detection algorithm;

Widely used in high-definition and intelligent monitoring scenarios such as airports, railways, ports, vessel, smart transportation, drone detection, Forest fire prevention, electricity, border and coastal defense etc；

Product		WDM-M5800G
Thermal Camera
Type of probe		Vanadium oxide non-cooling infrared detector
Effective Pixels		640x512
Pixel pitch		12µm
Spectral range		8~14µm
Sensitivity (NETD)		≤35 mK @F1.0, 300K
Lens type		Fixed or Zoom lens
Focal length		50mm	75mm	100mm	25-75mm			15-100mm
Digital zoom		2X, 4X, 8X
Aperture		F1.0			25mm(F0.9)-75mm(F1.1)			15mm(F0.85)-100mm(F1.25)
FOV (H x V)		8.8°x7.0°;	5.9°x4.7°;	4.4°X3.5°;	17.5°X14.0°~5.9°X4.7°			28.7°X 23.1°~4.4° X 3.5°
Focus range		3M~∞ ;	5M~∞ ;	10M~∞ ;	5M~∞（25MM）10M~∞（75MM）			5M~∞（15MM）10M~∞（100MM）
Image settings		Brightness, contrast, and gamma are adjustable through the client or browser
Pseudo Color		10 modes available, white hot/ black hot/golden autumn/rainbow/iron red, etc.
Image enhancement		Supports 0-255 level adjustment
Bad pixel correction		Support
Image noise reduction		Support
Image Flip		180°, Mirror
Shockproof		Electronic anti-shake, 1-3 level adjustment
Visible Camera
Sensor type		1/2.8”;		1/1.8”;			1/1.25”
Resolution		1920x1080@25/30fps60fps optional		2688x1520@25/30fps60fps optional			3840×2160@25/30fps60fps optional
Min. Illumination1		Color: 0.0005 Lux ; Black and white: 0.0001Lux
Shutter		1/25s to 1/100,000s; Support delayed shutter
Day/Night Switch		ICR infrared filter type; automatic, manual, timing, serial port trigger, alarm trigger
Focal length		7~322mm		6.6~264mm			10~550mm
Aperture		F1.8-F6.5;		F1.61-F5.19;			F1.5-F5.5
Field of view (H, V, D)		H:42-1° (wide-tele)		H:59.20-1.93° (wide-tele)			H:58.40-1.20° (wide-tele)
		V:24-0.6° (wide-tele)		V:34.82-1.14° (wide-tele)			V:34.90-0.70° (wide-tele)
		D:47.7-1.26° (wide-tele)		D:68.68-2.24° (wide-tele)			D:65.10-1.40° (wide-tele)
Image Settings		Saturation, Brightness, Contrast and Sharpness can be adjusted via the client-side or browser
BLC,HLC,WDR		Support
Defog		E-Defog
Day/night switching		Automatic, manual, timing, alarm trigger
3DNR		Support
Image overlay		Support BMP 24-bit image overlay, customizable area
Region of interest		Support three streams and four fixed areas
Electronic slow shutter		X2—X24
Distortion correction		Support, 0-100 level adjustment
Shockproof		Electronic anti-shake, 1-3 level adjustment
Illumination
Illumination distance		≥500m
Wavelength		850nm±10nm (940nm optional)
The Angle of the light		Electrically synchronized zoom,Far Angle 2°: effective distance>500m, spot diameter <36m;Near Angle 70°: effective distance>40m;
Time to change ratio		≤ 3 seconds (far to near)
Rangefinder²
Wavelength		1535nm
Range		15m-3000m
Accuracy		±1m
Resolution		0.1m
Frequency		1Hz
Wide Angle Camera²
Sensor type		1/1.8” Progressive Scan CMOS
Resolution		2688x1520
Focal Length		4mm
Field of View		H: 93.1° V:49.6° D:110.8°
PTZ
Transmission form		Direct drive torque motor
Rotation		Pan: 360° continuous rotation; Tilt: ±90°
Speeds		Pan: 0.09°~120°/s (expandable), Tilt 0.09°~110°/s (expandable)
Maximal acceleration		Level 300°/s², pitch 240°/s²
Angular resolution		0.01 °
Accuracy		≤0.05 °
Preset position		199 (standard user preset bits) +255 (extended user preset bits) The number of preset bits can be increased to 512 according to the customer
Scan pattern		Preset point scanning (adjustable preset time, adjustable preset scanning speed), horizontal two-point scanning (adjustable scanning speed, adjustable scanning time)
Locate function		Absolute Angle positioning (adjustable positioning speed), 3D positioning (adjustable positioning speed)
Main stream		Thermal:25fps(1920x1080, 1280x1024, 640x512);Visible:25fps/30fps (3840x2160, 2688x1520, 1920x1080, 1280x960, 1280x720);@8MP25fps/30fps (2688×1520, 2560x1440, 1920x1080, 1280x960, 1280x720);@4MP25fps/30fps (1920x1080, 1280x960, 1280x720);@2MP
Sub-stream		Thermal:25fps(640x512);Visible:25fps (1280×720, 704x576, 640x480, 352x288) @8MP/4MP25fps (704x576, 640x480 ,352x288) @2MP30fps (1280×720, 704x480, 640x480, 352x240)@8MP/4MP30fps (704x480, 640x480, 352x240)@2MP
Third stream		Visible:25fps (704x576, 640x480, 352x288) 30fps (704x480, 640x480, 352x240)Only for Model UV-ZDF35IXXXXX25fps (1920×1080, 1280×720,704×576, 640×480, 352×288) 30fps (1920×1080, 1280×720,704×480, 640×480, 352×240)
Area-of-interest		Supports three streams and sets four fixed areas respectively
Picture in picture		Supports overlay display of picture-in-picture
Video coding		H.265/H.264/MJPEG
H.265 picture quality		Main Profile
H.264 picture quality		BaseLine Profile / Main Profile / High Profile
Video compression		32 Kbps~16Mbps
Audio coding		G.711a/G.711u/G.722.1/G.726/MP2L2/AAC/PCM
Audio bit rate		64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/16-64Kbps(AAC)
Network
Memory function		Supports Micro SD/SDHC /SDXC card (256G) for offline local storage and NAS (NFS, SMB/CIFS supported)
Support agreement		TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,RTP,RTSP,RTCP,NTP,SMTP,SNMP,IPv6
Interface protocol		ONVIF (PROFILE S, PROFILE G), GB28181-2016, mainstream manufacturers protocol
Smart Function
General events		Mobile detection, video blocking, disk full, illegal access
Smart intelligence		Area intrusion, boundary detection, leaving the area, wandering detection, personnel gathering, rapid movement, item left detection, audio anomaly
Smart detection		Humanoid detection, non-motor vehicle detection, motor vehicle detection, boat detection, flying bird detection
General
Working temperature and humidity		-40℃~65℃, humidity less than 90% (no condensation)
Voltage		DC24V±20%
Power		Configuration dependent
Power protection		TVS 8000V lightning protection, surge protection, anti-sudden wave, in line with GB/T17626.5 level 4 standard
Case protection		IP66
Size(WxHxD)		333mm x 339mm x 252.8mm
Weight		Configuration dependent， ≤12.5 KG
Ordering Information²
Model		Description
WDM-M5800GXXX		Thermal:50mm;			Visible:6.6~264mm, 1/1.8”
WDM-M5800GXXX		Thermal:75mm;			Visible:7~322mm, 1/2.8”
WDM-M5800GXXX		Thermal:100mm;			Visible:7~322mm, 1/2.8”
WDM-M5800GXXX		Thermal:25-75mm;			Visible:7~322mm, 1/2.8”
WDM-M5800GXXX		Thermal:15-100mm;			Visible:10~550mm,1/1.25”
Optional Configurations		Wide angle camera; Rangefinder; Gyroscope; GPS;Digital compass;etc.
DRI³
Lens	Vehicle (4mx1.4m)				Human (1.8mx0.5m)
	Detection	Recognition	Identification		Detection	Recognition		Identification
50mm	6500m	1700m	850m		2600m	660m		330m
75mm	10200m	2500m	1280m		3900m	980m		490m
100mm	13600m	3400m	1700m		5200m	1300m		650m
