420TVL/600TVL/700TVL Vehicle Camera

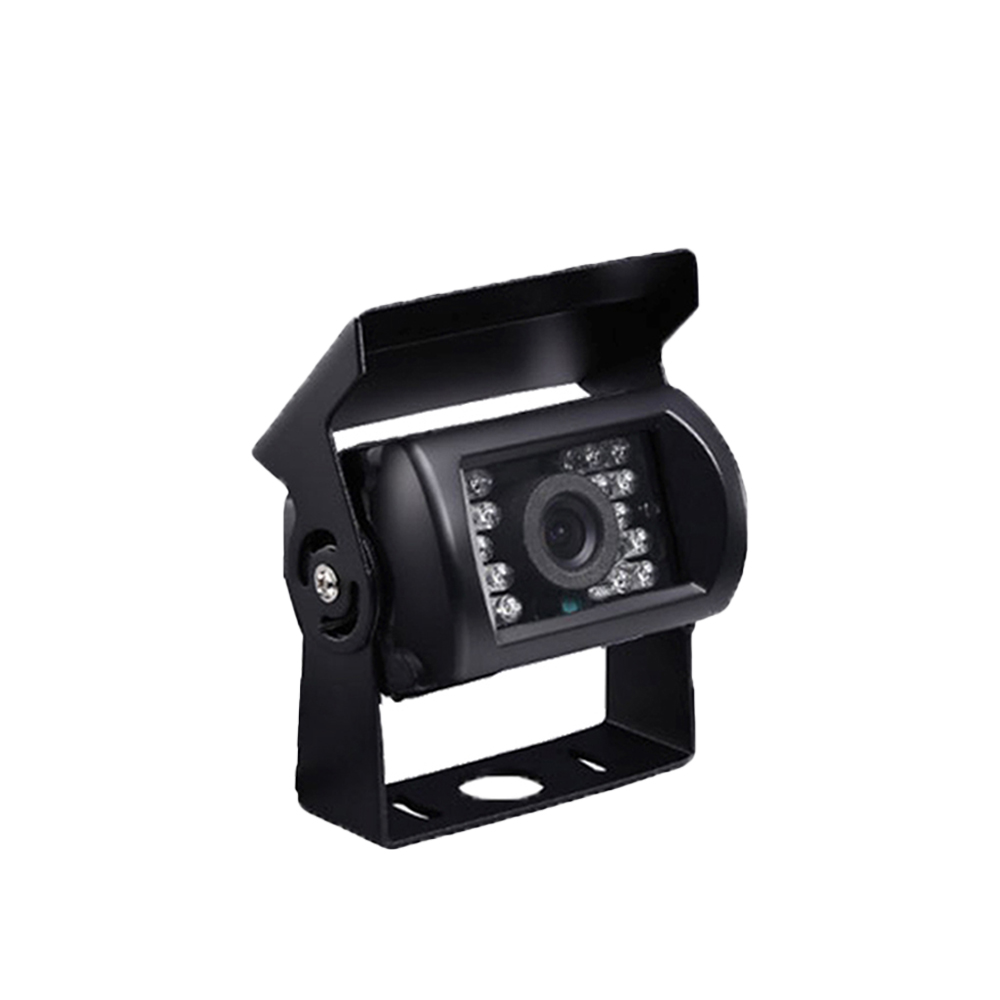

This is a closed circuit TV CCTV camera with mirror image used on car/bus /truck.

It adopts 2.8mm lens which can form 120degree wide angle view.

It is waterproof camera and water resistant level is IP65, so you can feel free to install outside.

It can be worked with car DVR recorder, quad processor. It can be viewed through LCD monitor, TV and etc.

Metal structure is firm, safety and waterproof. All products have been passed through high-press soggy testing and electricity ageing test over 12hours.


420TVL/600TVL/700TVL CCD resolution

15m night vision distance

24pcs ir led/white led

2.1/2.8/3.6mm wide view lens

Metal case, IP65 waterproof level

Aerial connector

Support wide voltage 9~24V and audio function

Image Sensor 1/3 CCD3142+405 1/4 CMOSH74401/3 CCD 8050+6391/3 CCD 4140+673
Horizontal ResolutionCCD 420TVLCCD 600TVLCCD 600TVLCCD 700TVL
Effective pixelsPAL:512(H)×582(V)PAL: 795(H)*596(V)PAL:795(H)*596(V)PAL:976(H)*582(V)
NTSC: 512(H)×492(V)NTSC:811(H)*508(V)NTSC:811(H)*508(V)NTSC:976(H)*494(V)
Minimum Illumination0.01Lux@(F1.2,AGC ON), 0Lux with IR
Auto Gain ControlSupport
D/N ModeIR cut Auto switchingIR cut Auto switching
Back light compensationSupport
White BalanceAUTO
Digital Noise ReductionAdaptive digital noise reduction, 2D/3D-DNR
Electronic ShutterAUTO/1/50(1/60) -1(50, 000Sec)
Image FunctionOriginal/Reverse image
Output Adapter4P aviation head cable
Lens2.8mm/3.6mm lens
IR LEDS Quantity24pcs ir leds/white leds
IR distance15meters
IP gradeIP69K
Operating Temperature/Humidity-30°C~+70°C/Humidity≤90%(No condensation)
Power SupplyDC12V±10%
Power Consumption≤1.2W
  1. 2.Custom Auido board
