Features:
Wardmay Explosion-proof IR Camera with 316L stailess steel material working in dangerous areas such as Food processing plants, oil and gas facilities, chemical sites, oil depots, ship tanks, ferry terminals, and border defence..
Lens: 4/6mm lens
Temperature: Works effectively in temperatures between -30°C to +80°C
Waterproof protection: IP68 enclosures are Able to protect against powerful water jets which work effectively for marine areas.
Night Vision: Provides clear surveillance during nighttime.
Atex Mark: II 2G Ex db IIC T6 Gb, II 2D Ex tb IIIC(85 degree) Db
IEC Mark: Ex dIIC T6 Gb/DIP A20 TA, T6
Adopt the highest level 316L Stainless Steel Material
2.0M Pixel 1/2.8" CMOS Sensor
30-60M IR Distance
Support Onvif, Rj45 port
Compatible with NVR to make video recording
| Specification | |
| Product Name | 316L Stainless Steel Explosion-Proof IR Bullet IP Camera |
| Model No. | WDM-EX200IPB/316L |
| Video | |
| System | High-performance DSP, Hisi3516C+Sony CMOS |
| Sensor | 2.0M Pixel 1/2.8" CMOS Sensor |
| Output resolution | 1920(H)×1080(V) |
| D/N Mode | Auto switching,black and white vide and IR cut action linkage |
| Illumination | Color: 0.01Lux@F1.2; B/W: 0.001 Lux@F1.2 |
| SNR | ≥50dB(AGC OFF) |
| WDR | >80dB(DWR) |
| Video processing | H.265 video compression, dual streaming |
| AVI format, 0.1M~6Mpbs adjustable; | |
| Video Output | Main streaming:1920*1080, 1280*960, 1280×720,1024×768,1280×720; Sub streaming: 960×540,640×360,480×270,352×288,320×240,352×192, 320×192,288×192,256×192 |
| Frame rate | 2.0MP 25/30 frame(full real time),support 1~30frame/seconds adjustable |
| Network interface | RJ45 ethernet,10/100M;RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP protocol supported |
| Standard ONVIF Protocol, Support third party access; PC; | |
| Access Protocol | Support IE6.0 and aboveSmartphone |
| Support Android\iPhone | |
| Lens | |
| Lens | 4/6mm lens for optional |
| IR distance | 30-60M IR Range, |
| Function | |
| Support WEB configuration, OSD,real-time video transmission | |
| Support motion detection | |
| Function | Support front end storage ,playback and download |
| Support uniform client and platform system application | |
| Support complete SDK for second development. | |
| Housing Material | |
| explosion-proof housing | 316L stainless steel, polishing passivation treatment, Rust corrosion resistance, never fade |
| Ingress Protection | IP68 |
| Interface spec | G-1/2” |

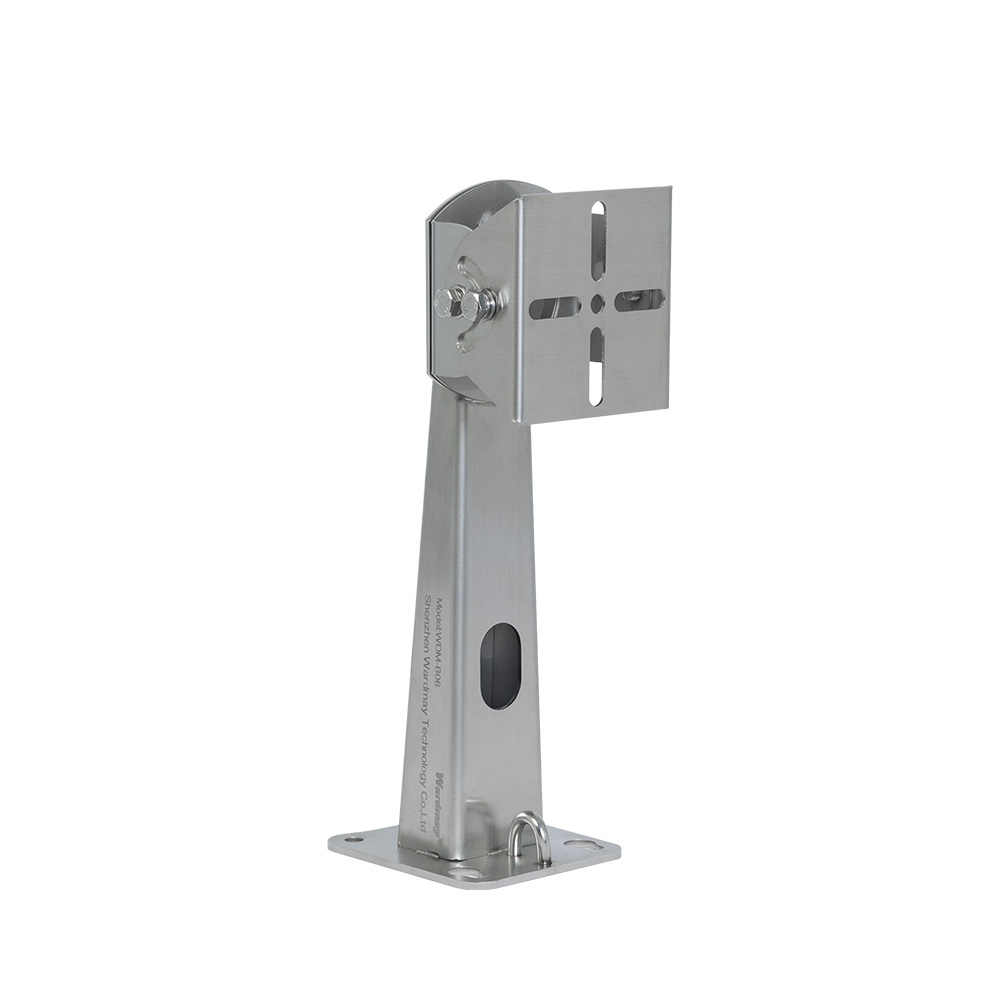

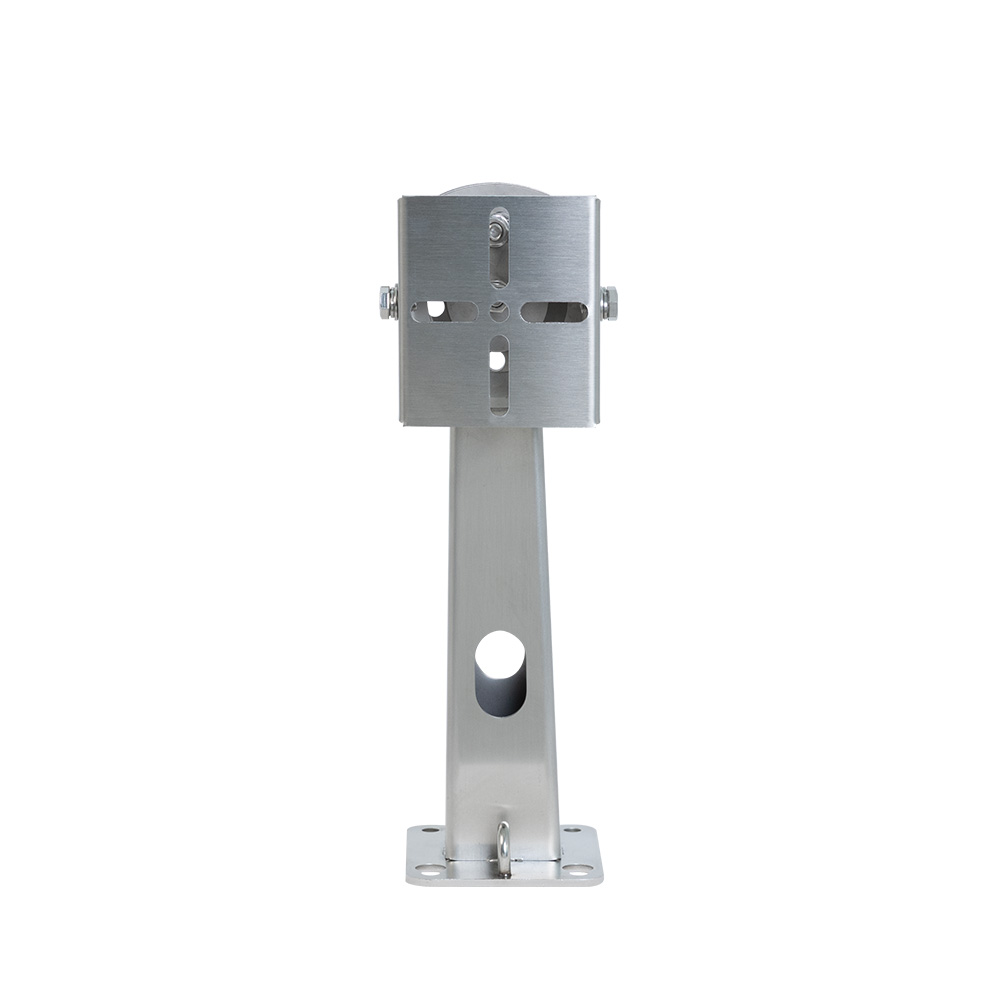

| Method of installation | bracket mount |
| Atex Mark | II 2G Ex db IIC T6 Gb, II 2D Ex tb IIIC(85 degree) Db |
| IEC Mark | Ex dIIC T6 Gb/DIP A20 TA, T6 |
| Normal | |
| Power supply | DC12V/POE(optional) |
| Working Current | <=1A |
