Features:
5MP High Resolution
2.8-12mm 4X Zoom Lens
PTZ: Pan 0 ° -350 °, Tilt 0 ° -70 °;
Explosion-proof housing
316L stainless steel surface treated with fluorine- carbon spray. elegant structure. explosion proof, dust proof, water proof, rust-proof…
Main stream: 15fps (2952*1944，2560*1440, 1920 * 1080, 1280 * 960, 1280 * 720);
Optics class toughened ultra clear white explosion proof glass, flux rate higher than 96%, completely eliminate infrared light halos.
We can customize right camera size according to your requirement
IP66 Waterproof
5.0Megapixel 1/2.8” CMOS 2592(H)×1944(V)
Night vision
Support PTZ, Onvif
Supports 220 preset positions and 8 cruise scans
316L Stainless Steel Camera Housing
Wall/ceilling hybrid braket mount
DC12V/POE
| Specification | |

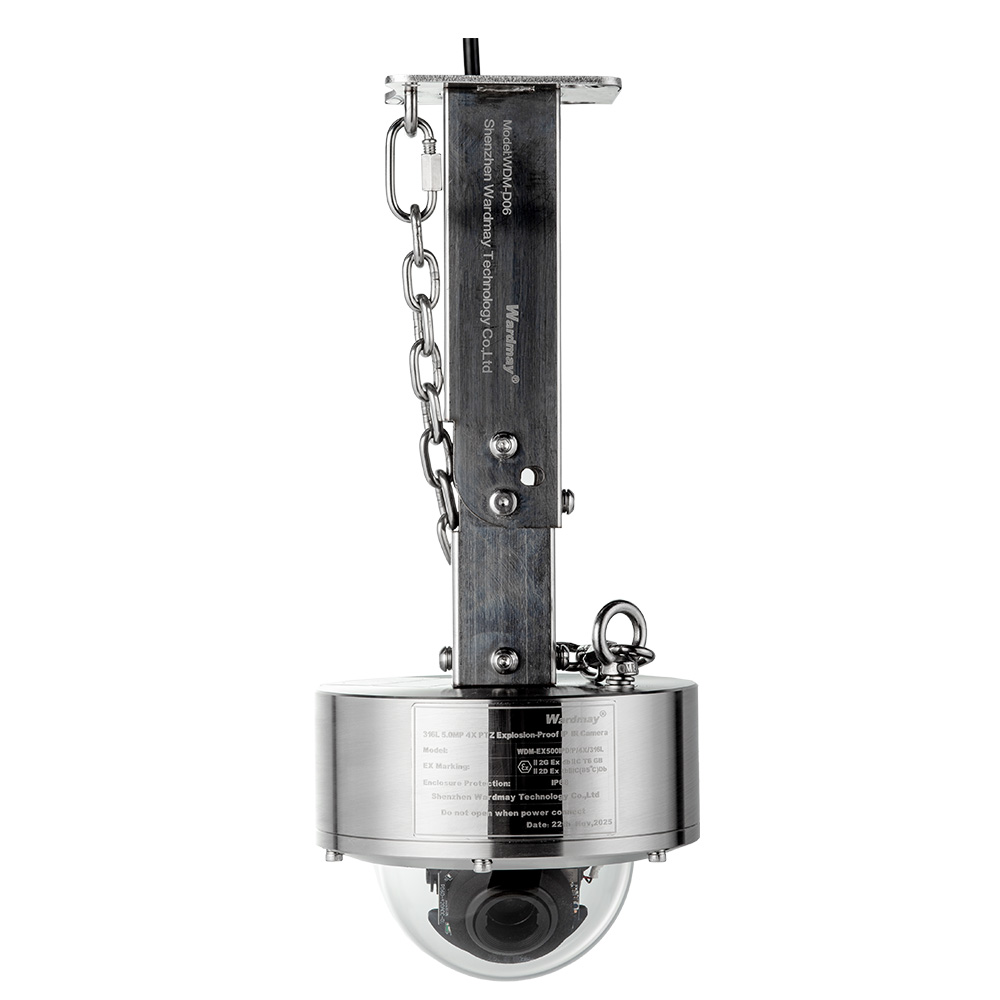

| Product Name | 5MP 4X IP 316L Stainless Steel Explosion-Proof IR PTZ Camera For Port/Ship/Marine |
| Model No. | WDM-EX500IPD/PR/4X/316L |
| Video | |
| Sensor | 5.0Megapixel 1/2.8” CMOS |
| Output resolution | 5.0MP(2592x1944) |
| D/N Mode | Auto switching, black and white vide and IR cut action linkage |
| Night Vision | 4pcs IR Leds |
| Illumination | Color: 0.001Lux@F1.2,B/W: 0.001 Lux@F1.2 |
| Video Compression | H.265 / H.264 |
| Video compression bitrate | 32 Kbps~16Mbps |
| Video Output | Main stream: 2952*1944,1920*1080, 1280*960, 1280*720,720*576, 640*480Sub-stream: 640*480,480*360, 352*288, 320*240, 176*144 |
| Frame rate | 5.0MP 15fps, support 1~30frame/seconds adjustable |
| Network interface | RJ45 ethernet,10/100M;Protocol support TCP IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,RTP,RTSP,RTCP,NTP,SMTP,SNMP,IPv6 |
| Access Protocol | Standard ONVIF Protocol, Support third party access; PC; |
| Support IE6.0 and aboveSmartphone | |
| Support Android\iPhone | |
| Lens | |
| Rotation Range | Pan 0 ° -350 °, Tilt 0 ° -70 °; |
| Rotation Speed | Horizontal: 0.02~200°/S (1-64 degree variable); Vertical: 0.02~120°/S (1-64 degree variable) |
| Lens | 4X optical zoom, f= 2.8mm～12mm |
| Function | |
| Function | Support WEB configuration, OSD,real-time video transmission |
| Support motion detection | |
| Support uniform client and platform system application | |
| Supports 220 preset positions | |
| Actual preset Accuracy ±0.10° | |
| Housing Material | |
| explosion-proof housing | 316L stainless steel, polishing passivation treatment, Rust corrosion resistance, never fade |
| Ingress Protection | IP66 |
| Interface spec | G-1/2” |

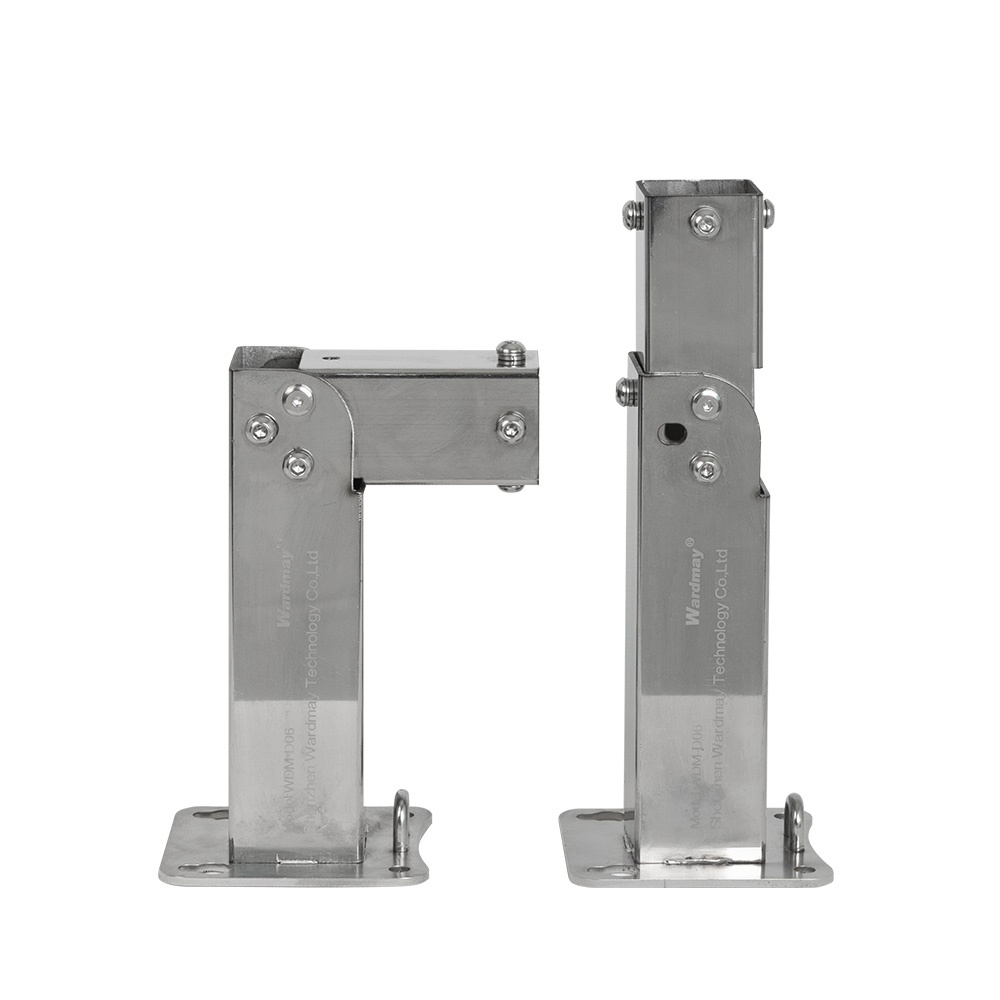

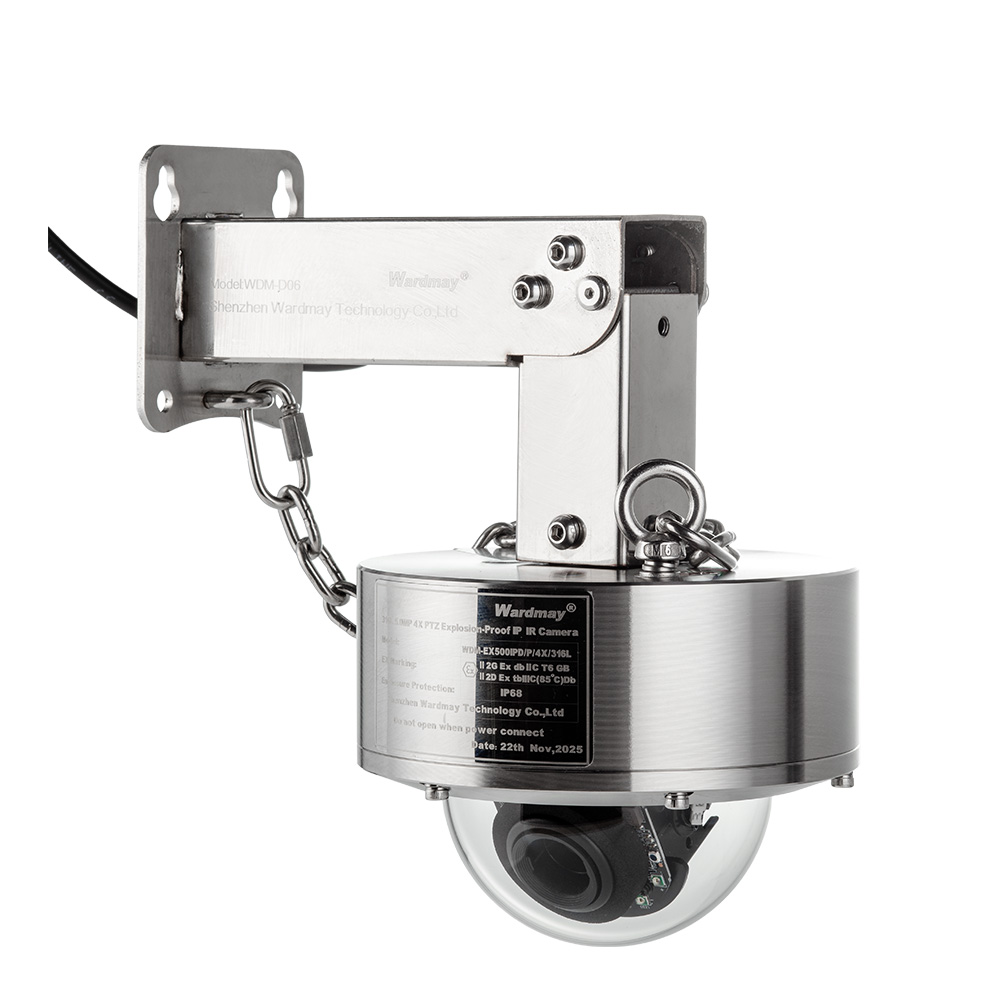

| Method of installation | wall/ceiling hybrid bracket mount |
| Atex Mark | II 2G Ex db IIC T6 Gb, II 2D Ex tb IIIC(85 degree) Db |
| IEC Mark | Ex dIIC T6 Gb/DIP A20 TA, T6 |
| Normal | |
| Power supply | DC12V/POE(optional) |
| Working Current | <=1A |
