Features:
ExdIICT6 Gb/DIP A21 TA, T6
2.0 Megapixel Sony CMOS
36X optical zoom

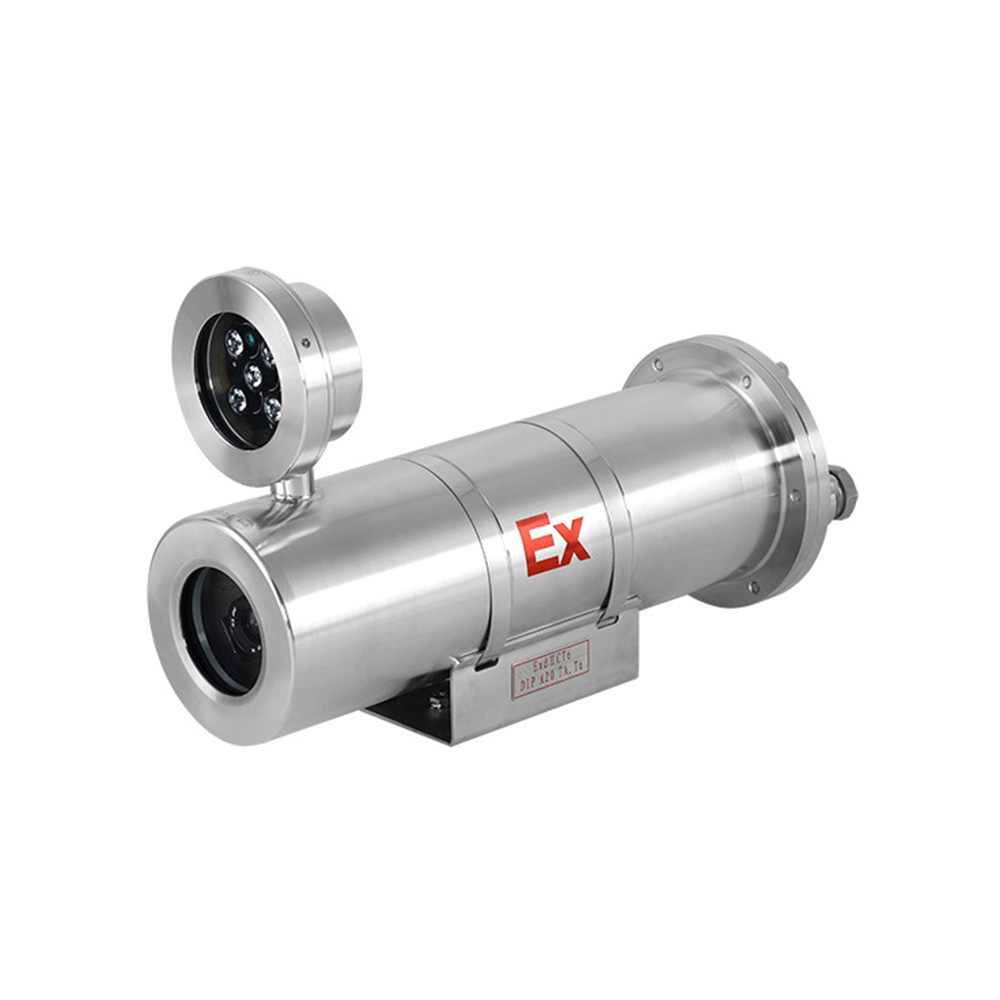

Wardmay 316L Explosion-Proof IR Camera applicable for the factories having the explosive mixtures formed from class IIA,IIB and IIC T1-T6 groupflammable gas, steam with air in area No.1 , No.2, and appearing the explosive hazardous area due to the mixture of flammable dust and air in areaNo.20,No.21 and No.22,such as oil field, chemical plant, port, oil storage, steamship, oil drilling platform, gas stations, coal mine, aviation, military, medicine, steel, firecrackers production, machinery, food processing and storage and so on.
- ExdIICT6 Gb/DIP A21 TA，T6
- 1/2.8" 2.0 Megapixel Sony CMOS
- 36X optical zoom
- 80-100M IR Distance
- 360°/S in Pan, +90°～-90° in Tilt
- 316L Stainless steel material
- IP68 weatherproof
- Support Hikvision, CMOS, TSN, UC2, main NVR ONVIF
- Preset time can be set from 1-120 seconds, vertical scan rate 1-300 angel/second, 64 stages adjustable
- Video play back function, 254 preset, The preset position accuracy is 0.1 degrees, 4 route 16 preset, Limiting automatic scanning function
| Specification | ||
| Model No. | WDM-EX200IPS36X/316 | |
| Certificate of Conformity | ||
| Marking | Ex d IIC T6 Gb/EX tD A21 IP68 T80℃ | |
| Housing Material | ||
| explosion-proof housing | 316 stainless steel | |
| Surface Treatment | Original Stainless Steel Color, Electropolishing Optional | |
| Ingress Protection | IP68 | |
| Interface Spec | G-1/2" | |
| Method of Installation | Wall Mounting & Lifting | |
| Video | ||
| Sensor | 2.0M Pixel 1/2.8" Sony CMOS Sensor | |
| Output resolution | 1920(H)×1080(V) | |
| D/N Mode | Color, Color video anytime in low light conditions | |
| Illumination | 0.1Lux(color), 0.01Lux( Black & White) | |
| WDR ranger | ≥80dB | |
| S/N Ratio | ≥50dB（AGC OFF) | |
| DNR | Support DNR, 3DNR | |
| Gain control | Auto/Manual | |
| Exposure mode | Program mode, shutter mode (custom shutter interval, grab license plate), manual | |
| Electronic shutter | 1/2 - 1/20,000s, support for slow shutter | |
| Privacy protection | Support 3D privacy area ON/OFF (4 privacy areas can be set on the same screen) | |
| D/N Mode | Auto IRC filter color conversion, fixed black and white, fixed color, external control | |
| Lens | ||
| Focus length | 4.6mm -167mm/F1.6~F4.8 | |
| Optical focus | 36X | |
| Night Distance | 80-100m(5pcs White Light ) | |
| Pan Tilt | ||
| Viewing angle | 61.2 °(proximal) / 2.32 °(distal) | |
| Presets | 254 | |
| Auto Mode | Support for 4 Auto cruises, 4 Auto line sweeps | |
| 3D positioning | Support click in center, box selection zoom in | |
| Compression standard | ||
| Video processing | H.265 Main Profile / H.264 Main profile / M-JPEG | |
| CBR/VBR, 32Kbps~10Mbps | ||
| Audio processing | G711, PCM | |
| Max Resolution | 1920x1080@30fps | |
| Video Resolutiont | Main streaming: 1920x1080、1280x960、1280×720、720×576、640×480; Sub streaming: 640×480、480X360、352×288、320×240、176×144;MJPEG: 1920x1080、1280x720, close | |
| Network Parameter | ||
| Visits | Main stream 3 users, Sub stream 6 users | |
| Network interface | TCP/IP, HTTP, NTP, IGMP, DHCP, UDP, SMTP, RTP, RTSP, ARP, DDNS, DNS, P2P | |
| Standard ONVIF Protocol, Support third party access; PC; | ||
| Access Protocol | Support IE6.0 and aboveSmartphone | |
| Support Android\iPhone | ||
| Compatibility | Support Hikvision, CMOS, TSN, UC2; Support main NVR ONVIF | |
| Interface | ||
| Analog output | 1.0Vpp/75Ω, NTSC/PAL, BNC | |
| Network interface | 1*10/100BaseT Ethernet, RJ45 | |
| Alarm In/Out | 1/1 | |
| Audio In/Out | 1/1 | |
| Normal | ||
| Rated Temperature | (-30℃ - +70℃) | |
| Atmospheric Pressure | 80-106KPa | |
| Relative Humidity | ≤95%RH(+25℃) | |
| Power supply | DC12V/AC24V | |
