Features:

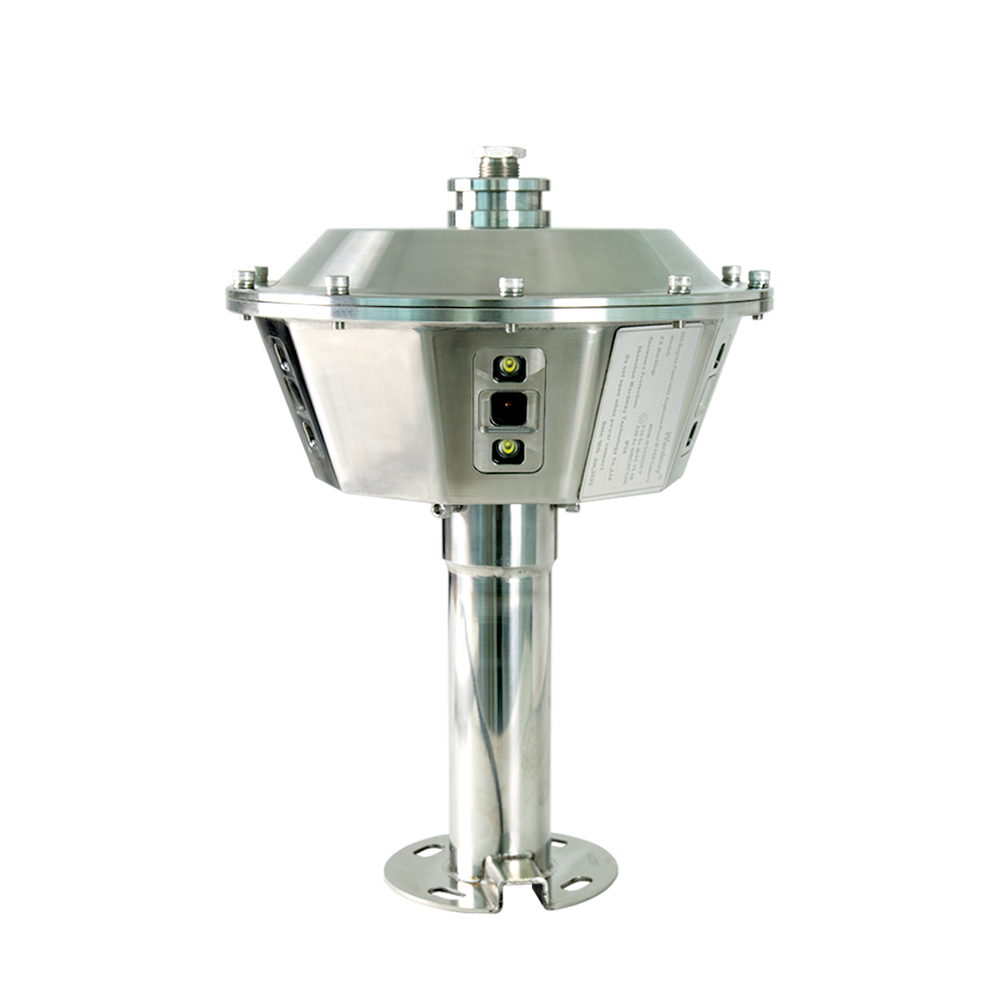

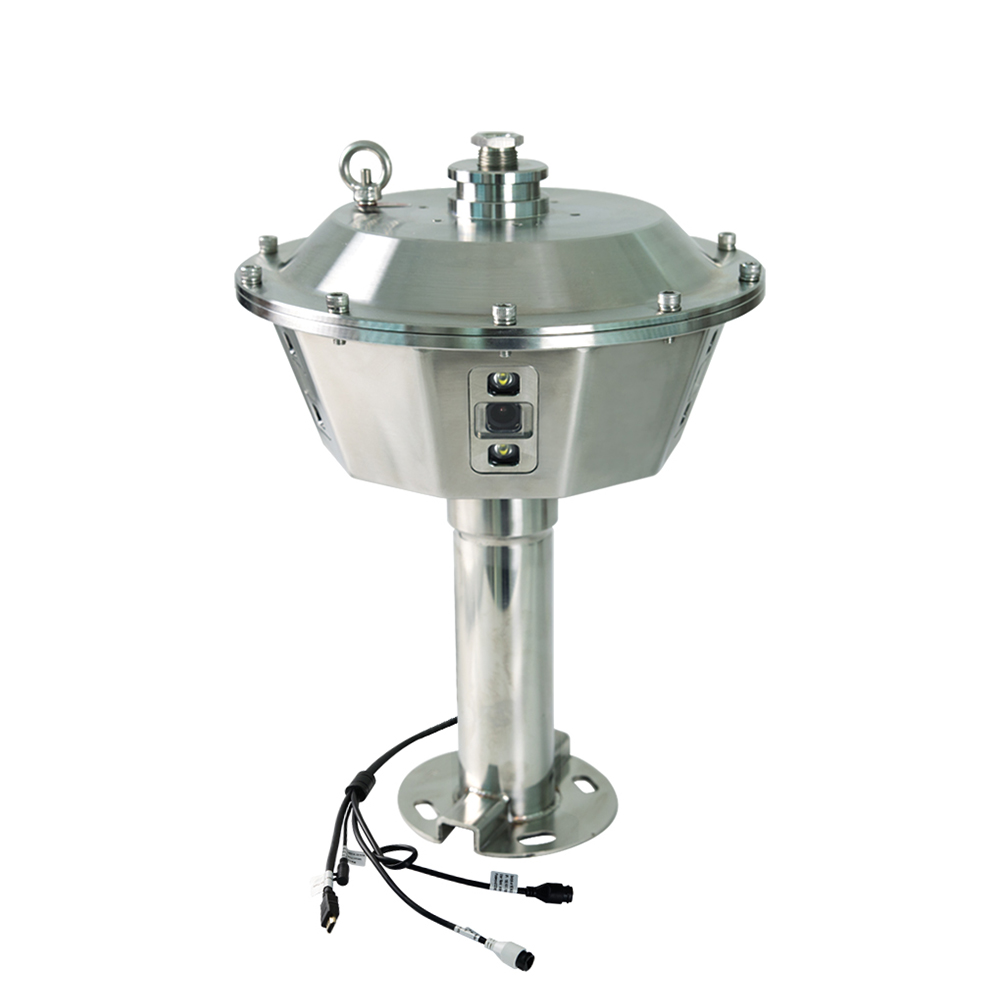

2MP Five Lens Single IP Marine Ship High-End Splicing Multi View Panoramic Camera
* 40nm high-end Splicing chip, Sony IMX290;
* Seamless splicing, low power consumption, low latency
* Synchronized output of 5-channel audio and panoramic video
* Low bandwidth, single channel video output

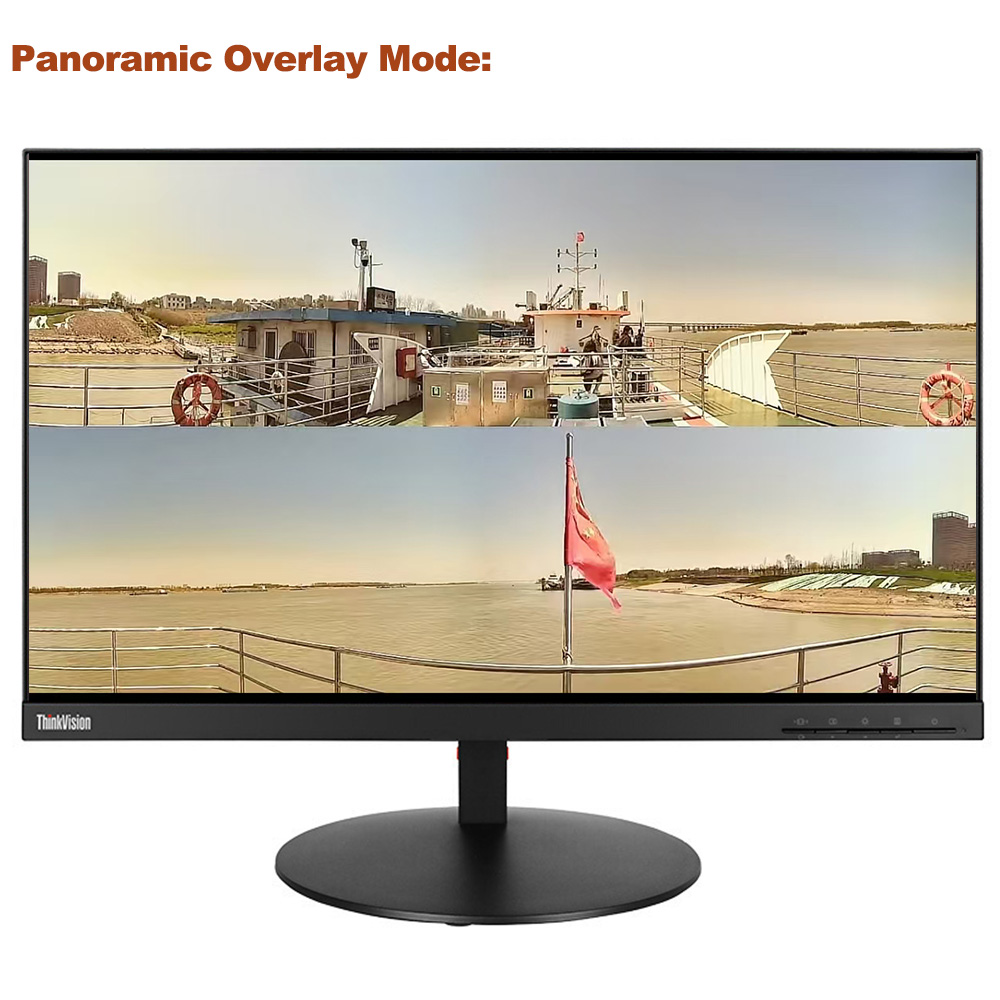

* Single channel split screen display, panoramic preview
* Single IP Address
Adopt 5pcs chips and lens, single IP address
1/2.8” Progressive CMOS Sony IMX290, 4mm Fixed Lens
2MP, high definition
Seamless high-end splicing image
5-10pcs warm light, radius=10-20m
0.0001Lux @(F1.2, AGC ON); 0 Lux with IR.
1 Channel audio input
Auto-Heating system, -30 °C...+80 °C working temperature
DC12V2A
Widely used in marine, ship and vessels.
| Specification | |||
| Product Name | 2MP Five Lens Single IP Marine Ship High-End Splicing Multi View Panoramic Camera | ||
| Model No. | WDM-IP52360B/P | ||
| System Function | |||
| IR Leds | 10pcs white light, radius=10-30m | ||
| Resolution and frame rate | Main Stream：50Hz: 1920H*1080V@25fps60Hz: 1920H*1080V@30fpsSub Stream50Hz: 25fps 1920H*1080V60Hz: 30fps 1920H*1080V | ||
| Video Compression | Panoramic：Main Stream: H.264/MJPEG, H.264 support Main/High ProfileSub Stream: H.264/MJPEG, H.264 support Main/High Profile | ||
| Audio | G.711ala/AAC | ||
| Smart Code | Low Bit Rate | ||
| Panoramic Camera | |||
| Sensor Type | 5pcs 1/2.8” Progressive Scan CMOS Sony IMX290 LQR-C. | ||
| Min.Illumination | 0.0001Lux @(F1.2, AGC ON); 0 Lux with IR. | ||
| Lens | 4mm / F1.91, Horizontal view angle 360°, Vertical angle 44°. | ||
| Noise Ratio | >52dB | ||
| 3D Noise Reduction | Support | ||
| White Balance | Automatic | ||
| Gain Control | Automatic | ||
| Electronic Shutter | 1/1-1/30,000s | ||
| Day & Night Mode | Automatic ICR to Color | ||
| Smart Image Enhancement | Backlight compensation, digital wide dynamic range, strong light suppression, digital noise reduction, fog penetration, area exposure | ||
| Network | |||
| Network Protocol | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnp, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bon jour | ||
| Application Programming Interface | Support Standard protocols ONVIF、Third party management platform access | ||
| Browser | Support IE8+, Chrome31-44, Firefox30-51 Browser | ||
| Safe Mode | Authorized username and password, MAC address binding, HTTPS encryption; | ||

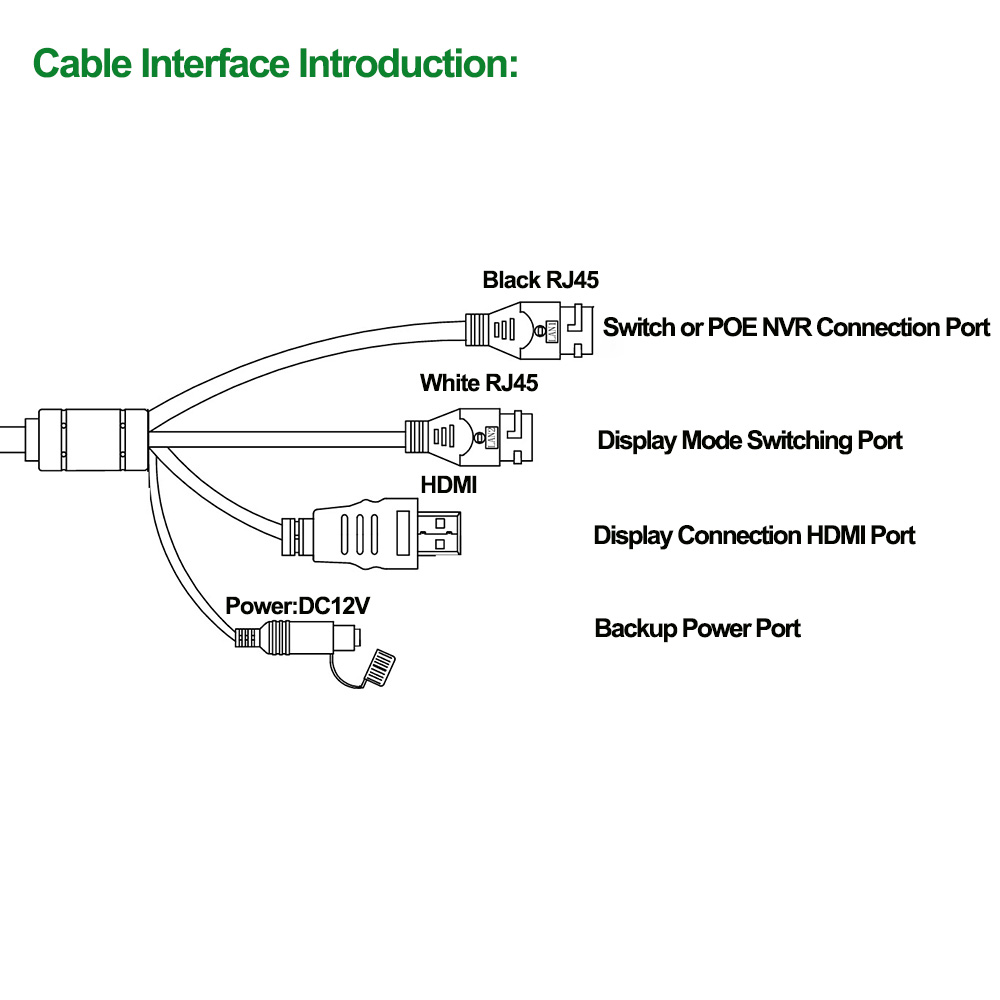

| Interface | |||
| Power Interface | DC12V/2A | ||
| Network Interface | RJ45 Port/POE，Adaptive 10M/100M/1000M | ||
| HDMI Interface | HDMI Support | ||
| Display Mode Network Interface | Support | ||
| Audio Input | 1CH | ||
| SD Card | Built-in Micro SD Slot，Support Micro SD Card（Max 256G） | ||
| General | |||
| Power Consumption | 24W Max | ||
| Material | 304/316L Stainless Steel | ||

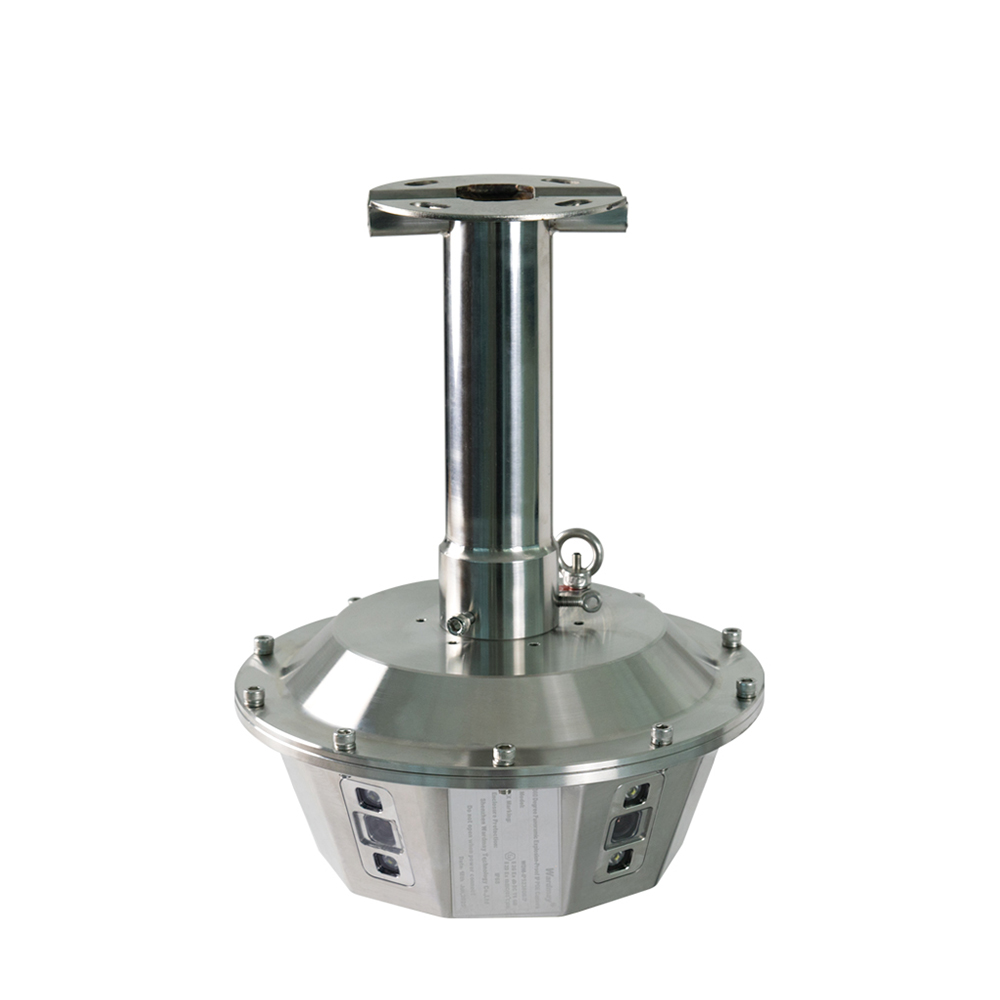

| Installation | Bracket/Lifting mounting | ||
| Waterproof Level | IP68 | ||
| Working Temperature and Humidity | -30°C~85°C; Humidity less than 90% | ||
| Equipment Dimension | ⌀252*136* (mm) | ||
| Packing Dimension | 350*350*300(mm) | ||
| Weight | <8kg | ||
