Features:

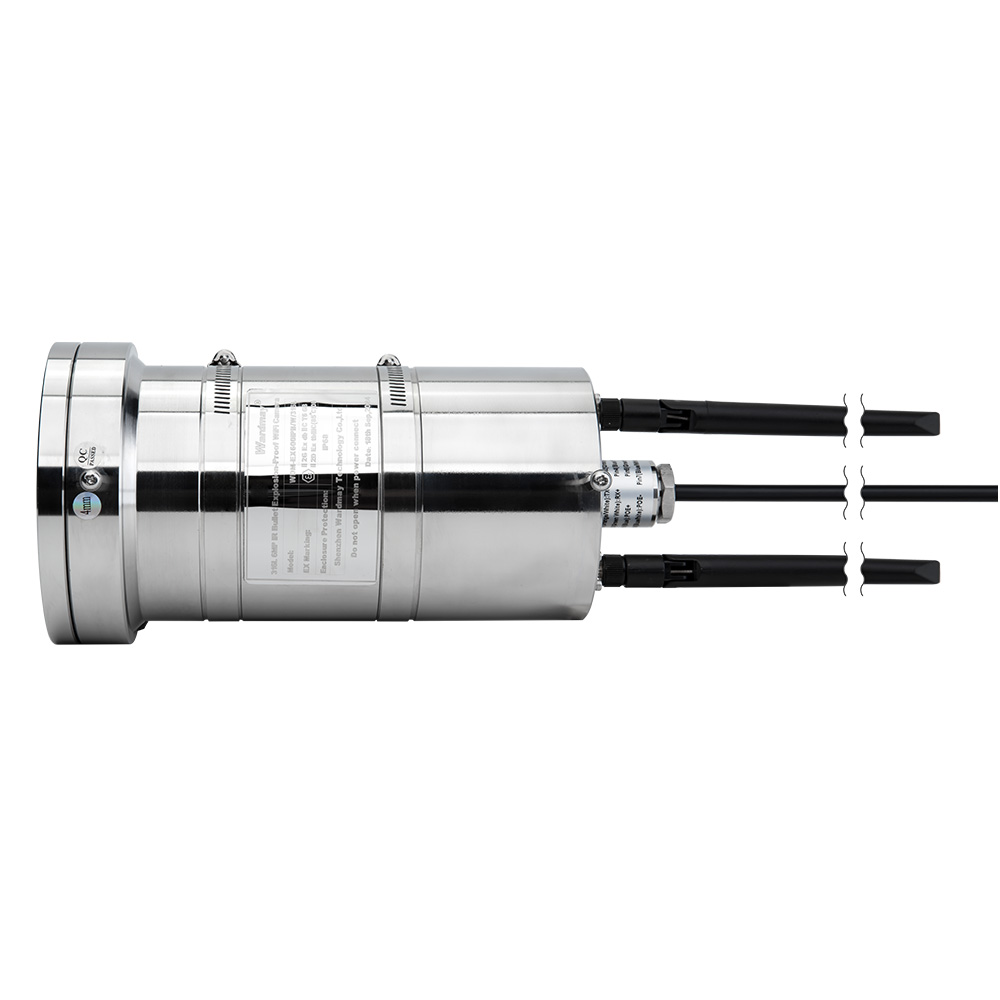

304 Explosion Proof Wireless WiFi Camera
Support: POE, WiFi, Two way audio, SD Slot
Lens: 3.6/4/6/8mm lens for optional
Temperature: Works effectively in temperatures between -25°C to +85°C
Waterproof protection: IP68 enclosures are Able to protect against powerful water jets which work effectively for marine areas.
Night Vision: Provides clear surveillance during nighttime.
Atex Mark: II 2G Ex db IIC T6 Gb, II 2D Ex tb IIIC(85 degree) Db
IEC Mark: Ex dIIC T6 Gb/DIP A20 TA, T6
Adopt the highest level 304 Stainless Steel Material
6.0M Pixel 1/2.8" CMOS Sensor IMX335
30-60M IR Distance
Support Onvif, RJ45 port, WiFi connection
Support Two-Way Audio, SD Card (max 128G)
DC12V/POE(optional)
Support Humanoid detection, face detection, motion detection
Compatible with brand NVRs to make video recording
| Specification | |
| Product Name | 6MP 304 IR Bullet Explosion Proof WiFi Camera |
| Model No. | WDM-EX600IPB/W |
| Video | |
| System | Embedded RTOS design, dual core 32-bit DSP IMX335 |
| Sensor | 1/2.8” 6.0M Pixels Progressive Black Light CMOS Image Sensor |
| Output resolution | 3072(H)×2048(V) |
| D/N Mode | Auto switching, black and white vide and IR cut action linkage |
| Illumination | Color 0.0001Lux@F1.2; Black 0.0001Lux@F1.2 |
| Video processing | H. 265+(compatible with H.265/H.264) encoding, dual stream, AVI format; The bitrate is adjustable from 0.1M to 8Mpbs; Frame rate adjustable from 1 to 30 frames per second |
| Video Output | Main streaming: 6MP 3072*2048@20fps；5MP 2880*1616@25fps；4MP 2560*1440@25fps；2MP 1920*1080@25fps； Sub streaming: 800*448@25fps |
| Shutter | 1/50 (1/60) seconds to 1/10000 seconds |
| Noise Reduction | Support 2D/3D |
| WDR | DWDR support |
| Support Two Way Audio | Speaker Spec: Output S.P.L.:87dB Rated Lmp： At 300Hz~1kHz 2.83VrmsMaxPower:1.2W IP68 waterproof level, aluminum alloy material; -25℃～75℃ working environment |
| Diaphragm capacitor microphone Spec: Sensitivity: -52dB Directivity: Omni-directional S/N Ratio: 50dB IP68 waterproof level, DC1.5V-10V, aluminum alloy material; -35℃～85℃ working environment | |
| Network interface | 1 RJ45 Ethernet interface, 10/100M adaptive; Support network protocols such as RTSP/FTP/DHCP/NTP/PnP |
| Access Protocol | Standard ONVIF Protocol, Support third party access; PC; |
| Support Android\iPhone | |
| Lens | |
| Lens | 3.6/4/6/8mm Standard Lens |
| IR distance | 30-60M IR Range |
| Function | |
| Function | Support two way audio |
| Support Humanoid detection, face detection, Motion Detection | |
| Support POE, powering and network connection | |
| Support Wifi connection, meet with IEEE 802.11b/g wireless standard | |
| Support Hikvision protocol, plug and play | |
| Support SD Slot, max 128GB | |
| Housing Material | |
| explosion-proof housing | 304 stainless steel, polishing passivation treatment, Rust corrosion resistance, never fade |
| Ingress Protection | IP68 |
| Interface spec | G-1/2” |
| Method of installation | bracket mount |
| Atex Mark | II 2G Ex db IIC T6 Gb, II 2D Ex tb IIIC(85 degree) Db |
| IEC Mark | Ex dIIC T6 Gb/DIP A20 TA, T6 |
| Normal | |
| Power supply | DC12V2A/POE(optional) |
| Operation temperature | -10°C~+60°C,10%~90%RH |
