Features:

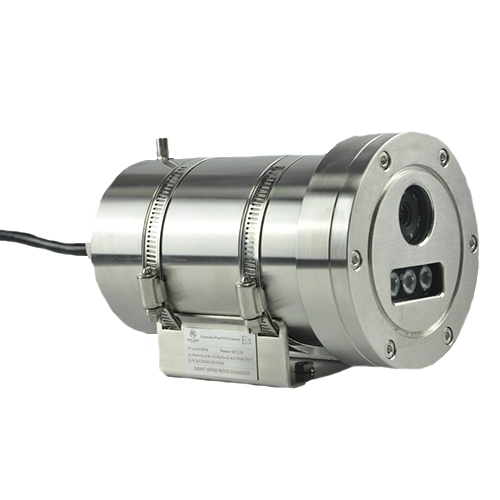

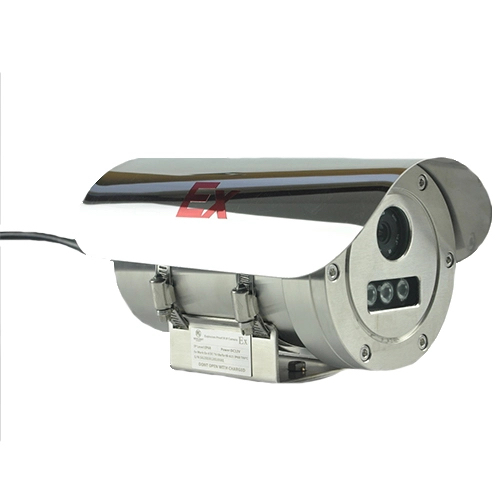

Wardmay Explosion-proof IR Camera with 316L stailess steel material working for marine, ship, vessels, offshore platform, port;
Lens: 4mm lens
Temperature: Works effectively in temperatures between -30°C to +80°C
Waterproof protection: IP68 enclosures are Able to protect against powerful water jets which work effectively for marine areas.
Night Vision: Provides clear surveillance during nighttime.
Atex Mark: II 2G Ex db IIC T6 Gb, II 2D Ex tb IIIC(85 degree) Db
IEC Mark: Ex dIIC T6 Gb/DIP A20 TA, T6
Adopt the highest level 316L Stainless Steel
8MP HD CMOS Sensor
4mm Fixed Lens
30-60M IR Distance
Support Onvif, Rj45 port
Compatible with Hikvision NVR to make video recording
| Specification | |
| Product Name | 316L Stainless Steel Explosion-Proof IR Bullet IP Camera |
| Model No. | WDM-EX800IPB/316L |
| Video | |
| System | High-performance DSP, Sony IMX415 |
| Sensor | 4K 8.0M Pixel 1/2.8" CMOS Sensor |
| Output resolution | 3840(H)×2160(V) |
| D/N Mode | Auto switching,black and white vide and IR cut action linkage |
| Illumination | Color: 0.005Lux@F1.2(AGC ON), B/W: 0Lux(IR ON) |
| Video processing | H.264 video compression, dual streaming |
| AVI format, 0.1M~6Mpbs adjustable; | |
| Network interface | RJ45 ethernet,10/100M;RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP protocol supported |
| Access Protocol | Standard ONVIF Protocol, Support third party access; PC; |
| Support IE6.0 and aboveSmartphone | |
| Support Android\iPhone | |
| Lens | |
| Lens | 4/6mm lens for optional |
| IR distance | 30-60M IR Range, |
| Function | |
| Function | Support WEB configuration, OSD,real-time video transmission |
| Support motion detection | |
| Support remotely view, playback and download | |
| Support uniform client and platform system application | |
| Housing Material | |
| explosion-proof housing | 316L stainless steel, polishing passivation treatment, Rust corrosion resistance, never fade |
| Ingress Protection | IP68 |
| Interface spec | G-1/2” |
| Method of installation | bracket mount |
| Atex Mark | II 2G Ex db IIC T6 Gb, II 2D Ex tb IIIC(85 degree) Db |
| IEC Mark | Ex dIIC T6 Gb/DIP A20 TA, T6 |
| Normal | |
| Power supply | DC12V/POE(optional) |
| Working Current | <=1A |
