Features:

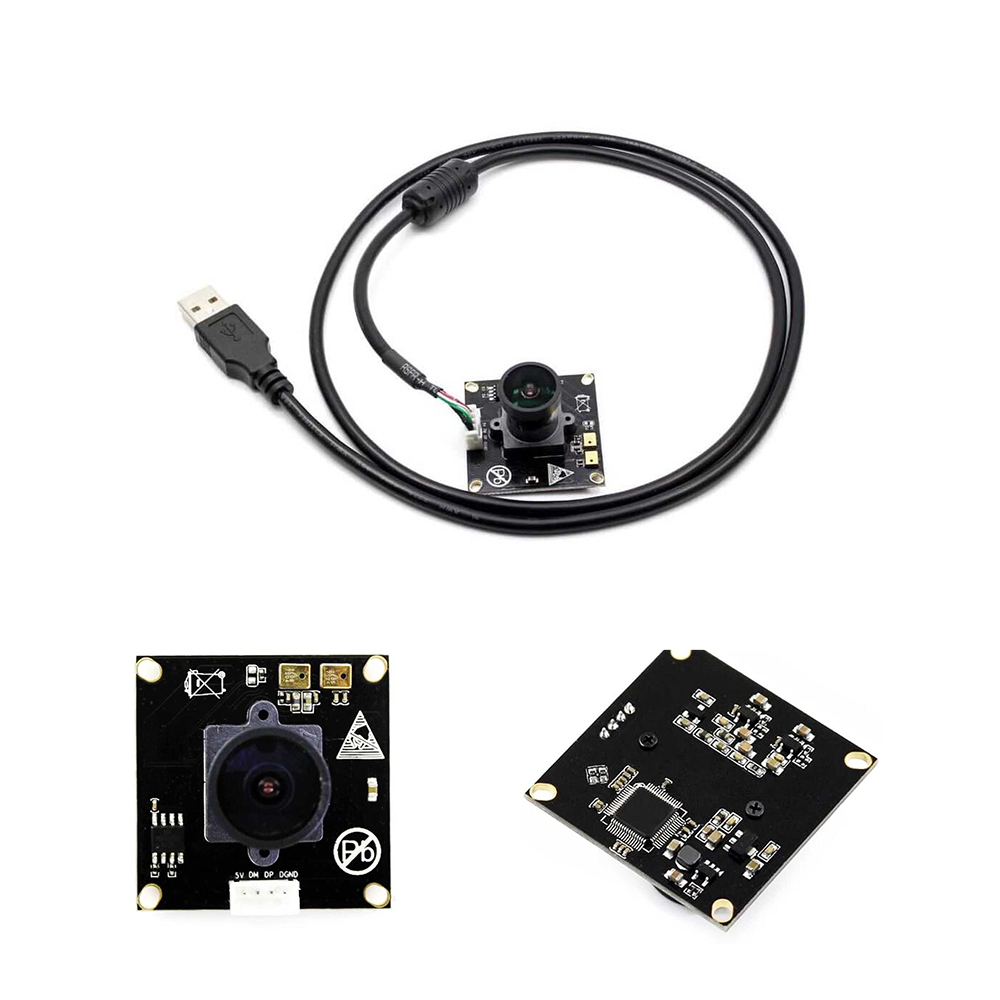

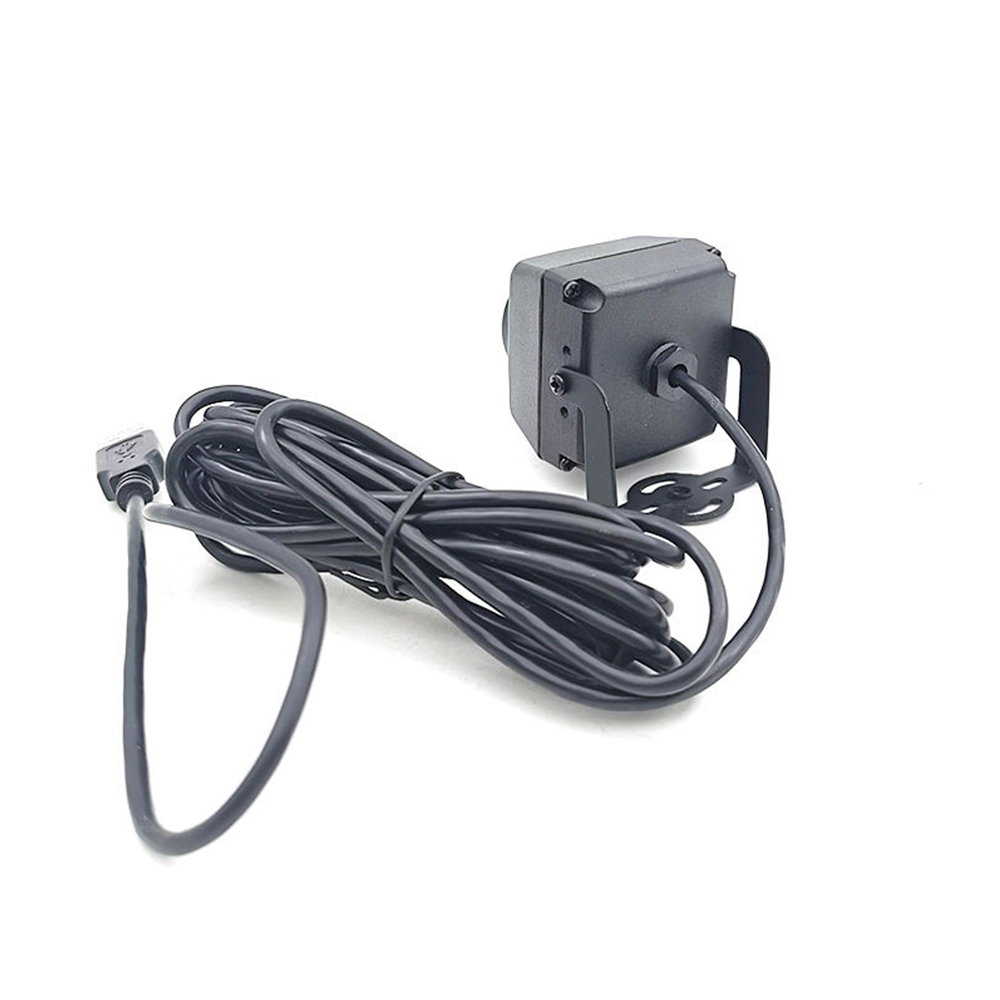

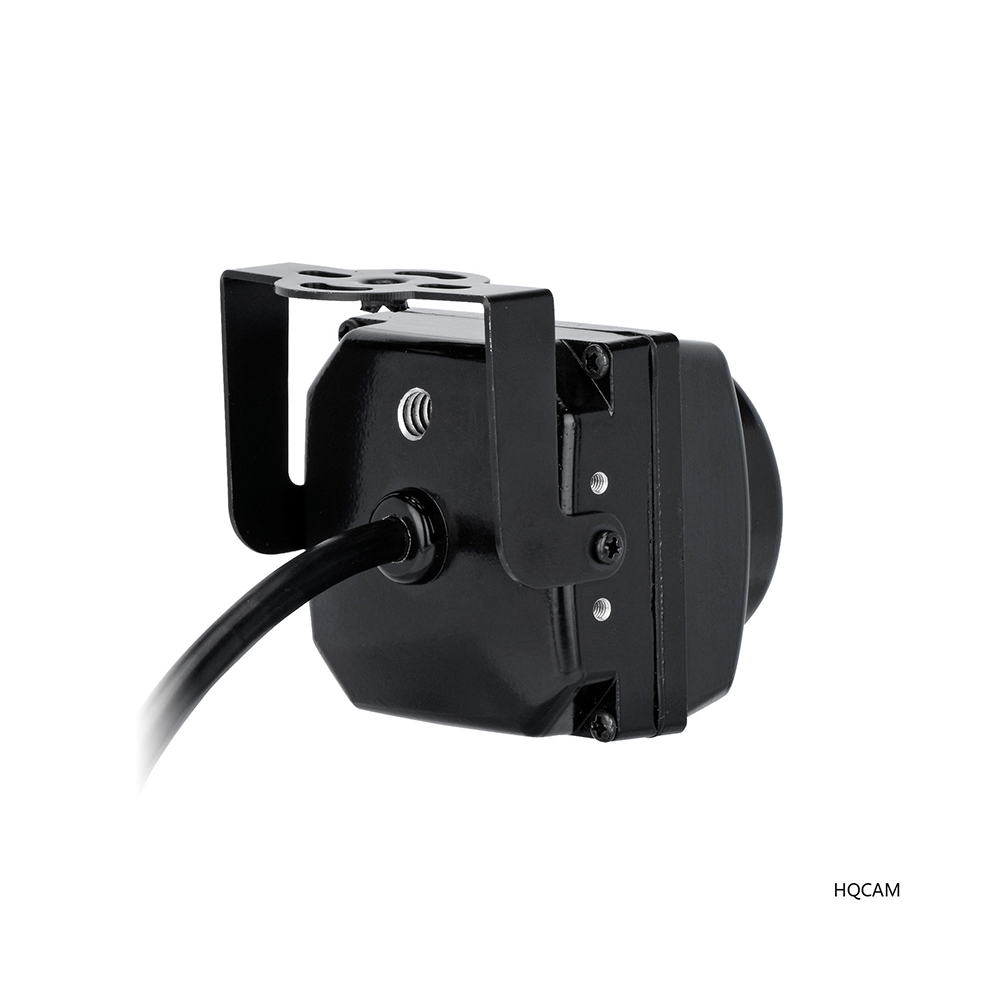

30fps Full HD Wide Angle IR OTG Type-C USB Camera
2MP resolution for optional
2MP@30FPS, 8MP@5fps, 48MP@7fps
Support 850/940nm IR Leds
3.6mm(STANDARD/No distortion lens, 2.1/2.5/2.8/4/6mm for optional
USB2.0/OTG/Type-C output for optional
Mjpeg/YUV2 image output
No-drive protocol
Application:
1. Inspecting industrial equipments
2. Assisting medical treatment
3. CCTV
4. Video teaching
5. Vehicle video applications
Night Vision
Audio support
2m standard cable
DC5V
System Support:
WinXP/Vista/Win7/Win8;
Linux with UVC (above linux-2.6.26);
MAC-OS X 10.4.8 or later;
Wince with UVC;
Android 4.0 or above with UVC;
| Product Model | WDM-V2009B | WDM-V2009BD | WDM-V2009B | WDM-V8009B | WDM-V48009B |
| Resolution | 2MP | 2MP WDR | 5MP | 8MP | 48MP |
| Sensor | 1/2.9" GC2053 | 1/2.7" RX2719 | 1/2.7-inch PS5520 | Sony 1/3.2" IMX179 | Sony 1/2" IMX586 |
| Focus Type | FF | FF | FF | AF(Auto Focus)/FF(Fixed Focus) | AF(Auto Focus)/FF(Fixed Focus) |
| Lens Size | 3.6mm No distortion lens, (2.1/2.5/2.8/4/6mm for optional) | 3.6mm No distortion lens H=105° V=70°, (2.1/2.5/2.8/4/6mm for optional) | 3.6mm No distortion lens H=105° V=70°, (2.1/2.5/2.8/4/6mm for optional) | 3.9mm Auto Focus lens H=80° V=50°，(2.1/2.5/2.8/4/6mm for optional) | 3.9mm Auto Focus lens H=80° V=50°，(2.1/2.5/2.8/4/6mm for optional) |
| Pixel Size | 2.8um x2.8um | 3 um x3 um | 2.2um x2.2um | 1.4um x1.4um | 0.8um x0.8um |
| Max resolution | 1920(H)X1080(V) | 1920(H)X1080(V) | 2592(H)x1944(V) | 3264(H)X2448(V) | 8000(H)X6000(V) |
| Output image format | MJPEG /YUY2 | MJPEG /YUY2 | MJPEG /YUY3 | MJPEG /YUY2 | MJPEG /YUY2 |
| Frame Rate | MJPG 1920X1080 @25fps;MJPG 1280X1024 @25fps;MJPG 1280X720 @25fps;MJPG 1024X768 @25fps;MJPG 800X600 @25fps;MJPG 640X480 @25fps;MJPG 640X480 @25fps;MJPG 352X288 @25fps;MJPG 320X240 @25fps;MJPG 160X120 @25fps;YUY2 1920X1080 @5fps;YUY2 1280X720 @10fps;YUY2 960X540 @20fps;YUY2 800X600 @25fps;YUY2 640X480 @25fps; | MJPG 1920X1080 @25fps;MJPG 1280X1024 @25fps;MJPG 1280X720 @25fps;MJPG 1024X768 @25fps;MJPG 800X600 @25fps;MJPG 640X480 @25fps;MJPG 640X480 @25fps;MJPG 352X288 @25fps;MJPG 320X240 @25fps;MJPG 160X120 @25fps;YUY2 1920X1080 @5fps;YUY2 1280X720 @10fps;YUY2 960X540 @20fps;YUY2 800X600 @25fps;YUY2 640X480 @25fps; | MJPG 2592X1944 @20fps 1920X1080 @25fps;MJPG 1280X1024 @25fps;MJPG 1280X720 @25fps;MJPG 1024X768 @25fps;MJPG 800X600 @25fps;MJPG 640X480 @25fps;MJPG 640X480 @25fps;MJPG 352X288 @25fps;MJPG 320X240 @25fps;MJPG 160X120 @25fps;YUY2 1920X1080 @5fps;YUY2 1280X720 @10fps;YUY2 960X540 @20fps;YUY2 800X600 @25fps;YUY2 640X480 @25fps; | MJPG 3264x2448 @15fps;MJPG 2592x1944 @15fps; MJPG 1920X1080 @30fps;MJPG 1600X1200 @30fps;MJPG 1280X720 @30fps;MJPG 960X540 @30fps;MJPG 848X480 @30fps;MJPG 640X480 @30fps;MJPG 640X360 @30fps;MJPG 424X240 @30fps;MJPG 320X240 @30fps;MJPG 320X180 @30fps;YUY2 3264x2448 @2fps;YUY2 2592X1944 @2fps;YUY2 1920X1080 @5fps;YUY2 640X480 @30fps;YUY2 320X240 @30fps; YUY2 320X180 @30fps. | MJPG 8000X6000@7fps;MJPG 4000X3000@20fps;MJPG 3840X2160@30fps;MJPG 2592x1944@30fps;MJPG 2048x1536@30fps;MJPG 1920x1080@30fps; MJPG 1280x720@30fps;MJPG 640x480@30fps;YUY2 1920x1080@30fps;YUY2 1280X720@30fps;YUY2 640x480@30fps. |
| Dynamic Range | / | 72 dB | / | / | / |
| USB Protocol | USB2.0(Full-Speed) | USB2.0(Full-Speed) | USB2.0(Full-Speed) | USB2.0(Full-Speed) | USB2.0(Full-Speed) |
| Support OTG Protocol | Support | Support | Support | Support | Support |
| Support free drive protocol | USB Video Class(UVC) | USB Video Class(UVC) | USB Video Class(UVC) | USB Video Class(UVC) | USB Video Class(UVC) |
| Interface Type | USB2.0/OTG/Type-c | USB2.0/OTG/Type-c | USB2.0/OTG/Type-c | USB2.0/OTG/Type-c | USB2.0/OTG/Type-c |
| Automatic Exposure Control (AEC) | Support | Support | Support | Support | Support |
| AEB | Support | Support | Support | Support | Support |
| AGC | Support | Support | Support | Support | Support |
| Adjustable Parameter | Brightness, contrast, hue, saturation, clarity;Gamma White Balance Backlight Compensation Gain Aperture Exposure | Brightness, contrast, color saturation, hue clarity; Gamma White Balance Backlight Contrast Exposure | Brightness, contrast, color saturation, hue clarity; Gamma White Balance Backlight Contrast Exposure | Brightness, contrast, hue, saturation, clarity;Gamma White Balance Backlight Compensation Gain Aperture Exposure | Brightness, contrast, color saturation, hue clarity; Gamma White Balance Backlight Contrast Exposure |
| Night Vision Function | Support 850/940nm IR Leds (Black&White image for night) | Support 850/940nm IR Leds (Black&White image for night) | Support 850/940nm IR Leds (Black&White image for night) | Default: without leds, with optical filter, fixed/Auto focus lens available (Full Color image for day and night) Optional: Support white light, only fixed lens available, full color, auto focus lens not support; NOT Support 850/940nm IR Leds; | Default: without leds, with optical filter, fixed/Auto focus lens, (Full Color image for day and night) Optional: Support white light, fixed or auto focus lens are all available, full color;NOT Support 850/940nm IR Leds; |
| Light board power supply interface | 2P-2.0mm Socket | 2P-2.0mm Socket | 2P-2.0mm Socket | 2P-2.0mm Socket | 2P-2.0mm Socket |
| Audio | Support (For optional) | Support (For optional) | Support (For optional) | Support (For optional) | Support (For optional) |
| Power Method | dev/bus/usb/002/002 | dev/bus/usb/002/002 | dev/bus/usb/002/003 | dev/bus/usb/002/002 | dev/bus/usb/002/002 |
| Working Voltage | DC 5V | DC 5V | DC 5V | DC 5V | DC 5V |
| Working current | <200mA | <200mA | <200mA | <200mA | <200mA |
| Stable Image temperature | 0~60℃ | 0~60℃ | 0~60℃ | 0~60℃ | 0~60℃ |
| Operating temperature: | -20~70℃ | -20~70℃ | -20~70℃ | -20~70℃ | -20~70℃ |
| Motherboard Size:Packing Size: | 38*38mm90*90*85mm | 38*38mm, (compatible 32*32mm)90*90*85mm | 38*38mm90*90*85mm | 38*38mm90*90*85mm | 38*38mm, (compatible 32*32mm) 90*90*85mm |
| Cable Length: | 1.5m standard／3m or 5m for optional / Customized | 1.5m standard／3m or 5m for optional / Customized | 1.5m standard／3m or 5m for optional / Customized | 1.5m standard／3m or 5m for optional / Customized | 1.5m standard／3m or 5m for optional / Customized |
| Supported System: | WinXP/Vista/Win7/Win8;Linux with UVC (above linux-2.6.26);MAC-OS X 10.4.8 or later;Wince with UVC;Android 4.0 or above with UVC. | WinXP/Vista/Win7/Win8;Linux with UVC (above linux-2.6.26);MAC-OS X 10.4.8 or later;Wince with UVC;Android 4.0 or above with UVC. | WinXP/Vista/Win7/Win8;Linux with UVC (above linux-2.6.26);MAC-OS X 10.4.8 or later;Wince with UVC;Android 4.0 or above with UVC. | WinXP/Vista/Win7/Win8;Linux with UVC (above linux-2.6.26);MAC-OS X 10.4.8 or later;Wince with UVC;Android 4.0 or above with UVC. | WinXP/Vista/Win7/Win8;Linux with UVC (above linux-2.6.26);MAC-OS X 10.4.8 or later;Wince with UVC;Android 4.0 or above with UVC. |
