Features:

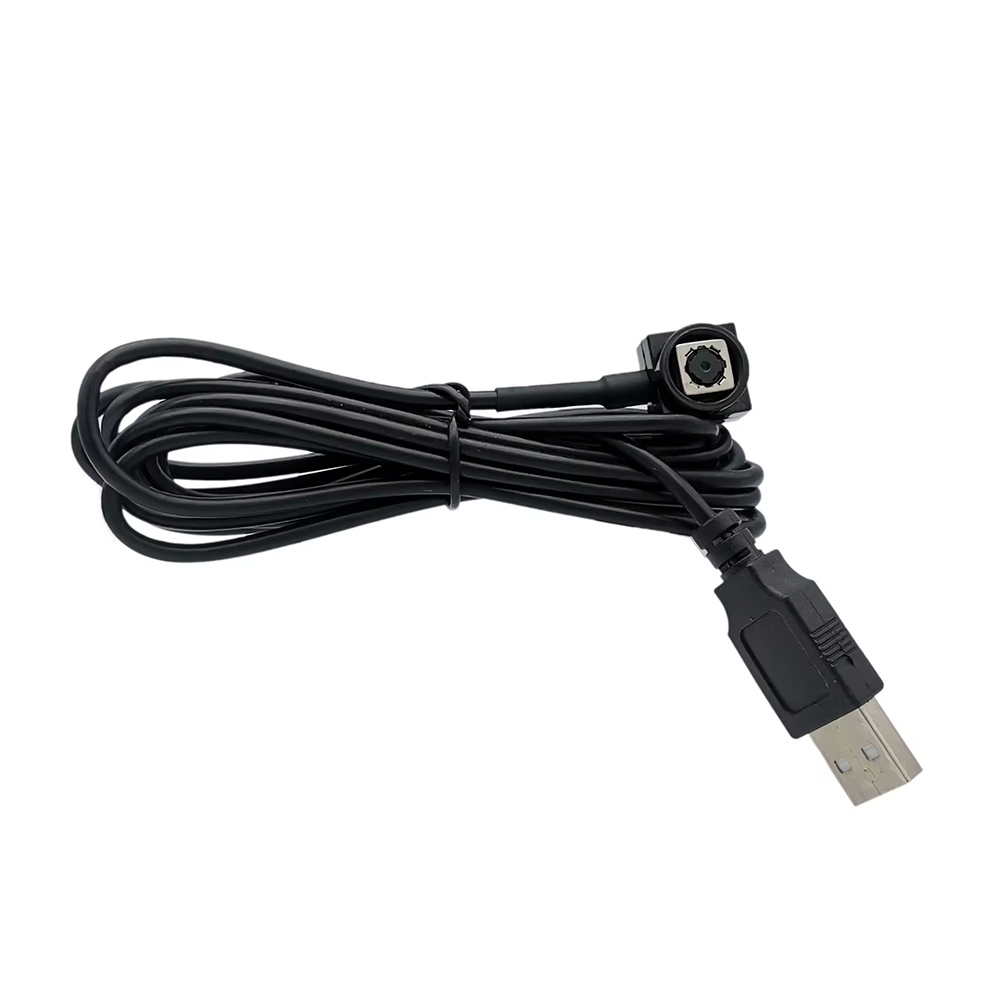

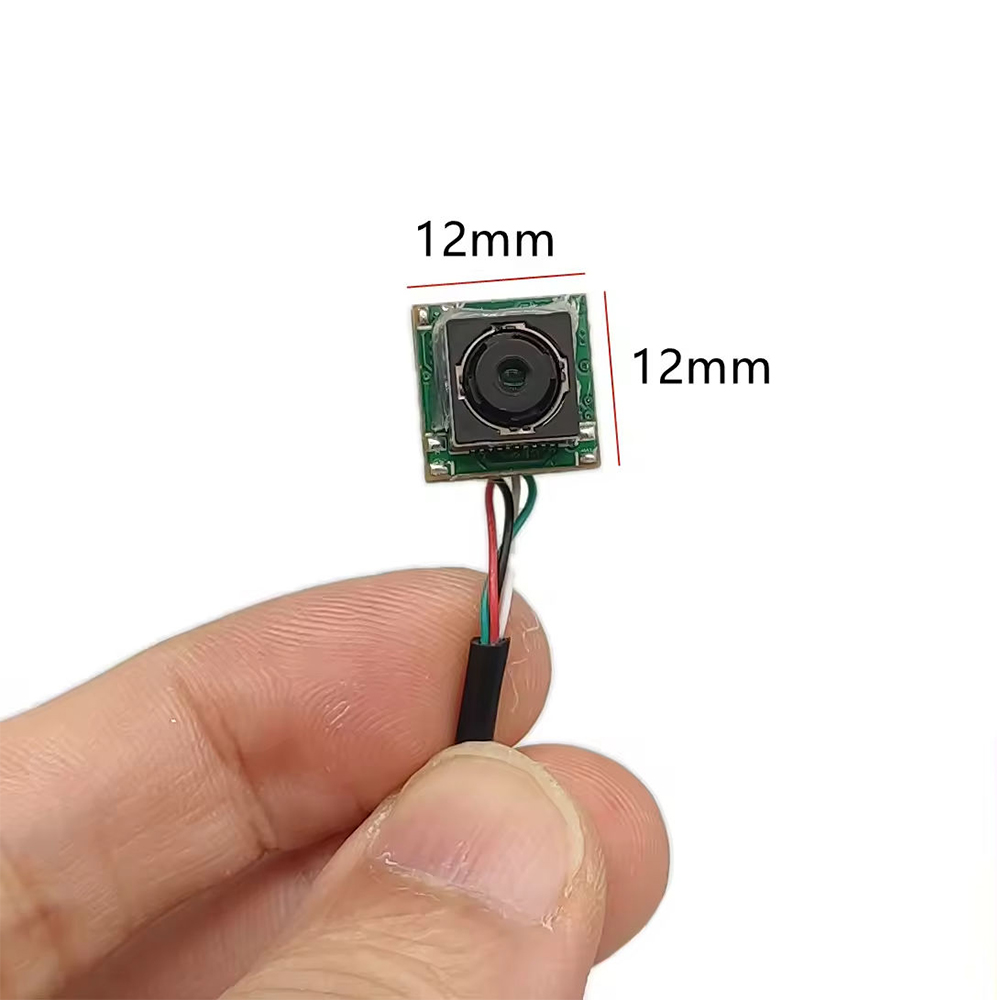

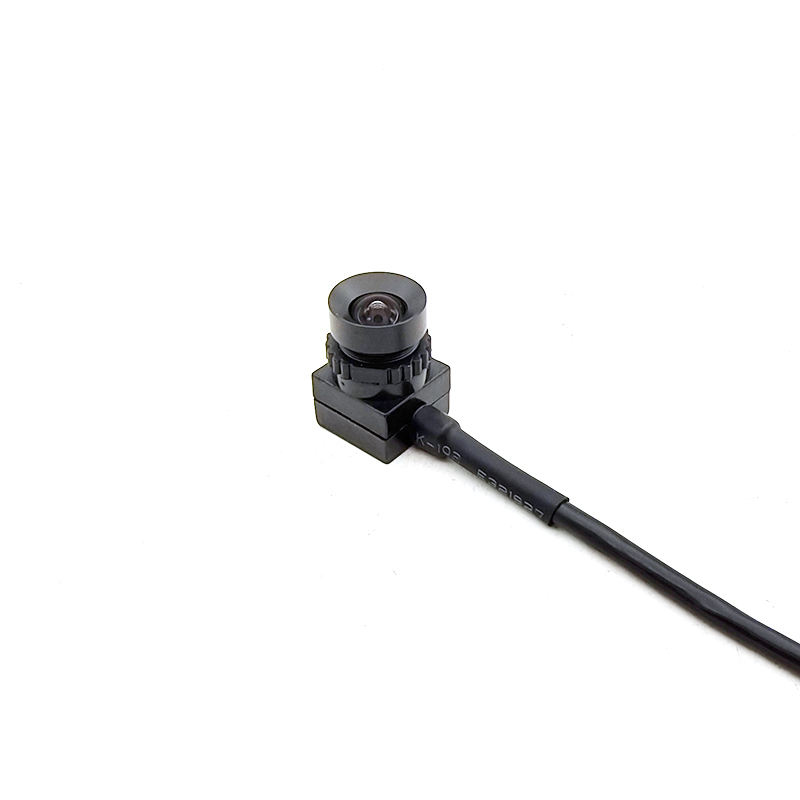

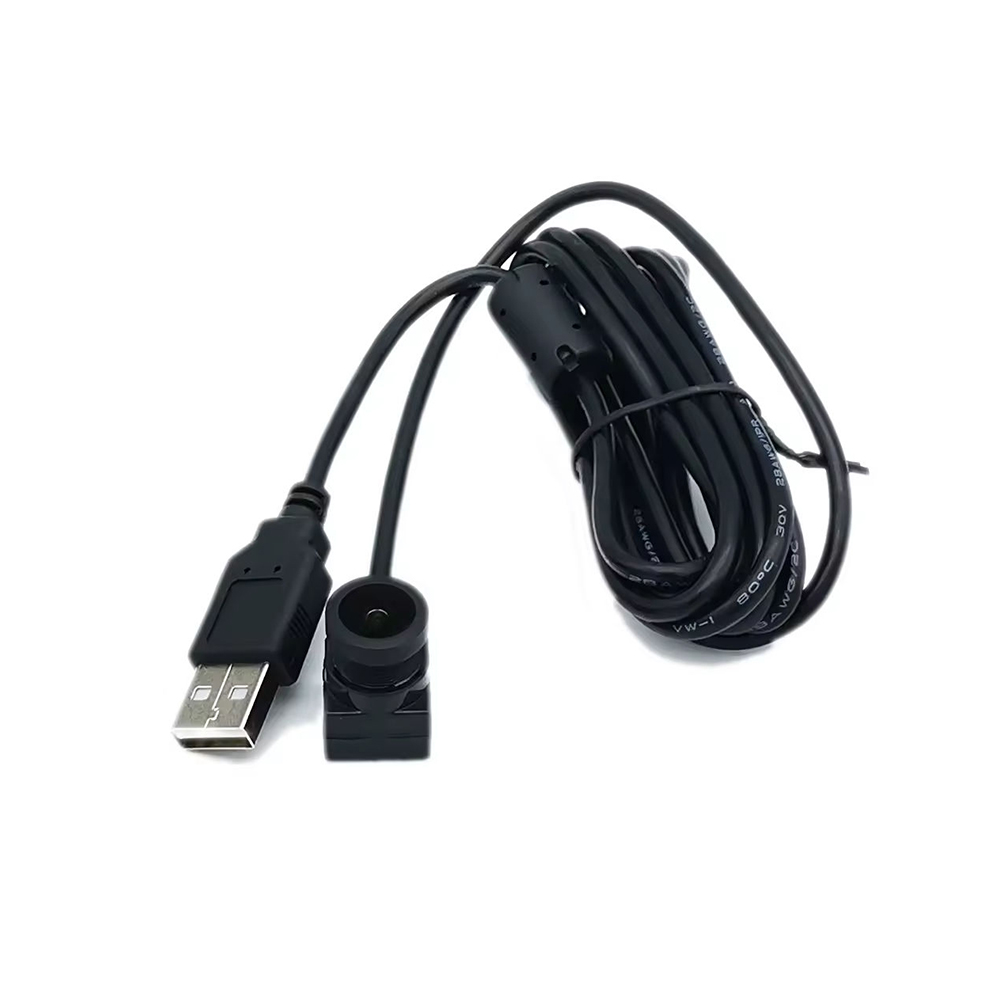

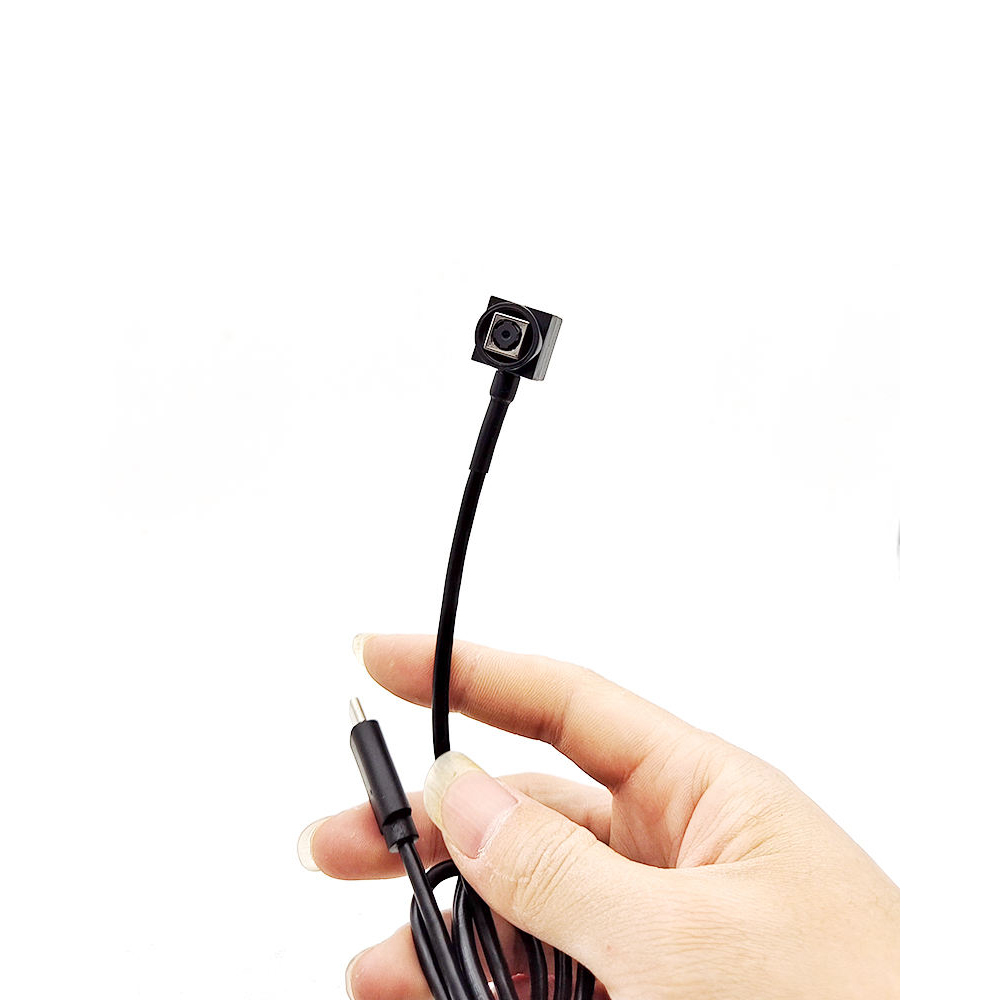

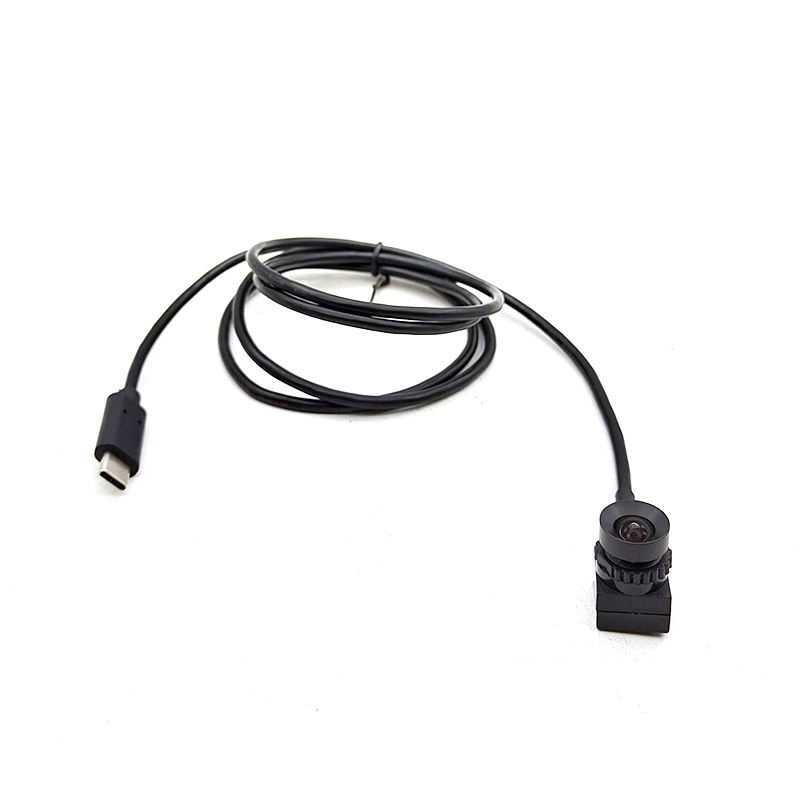

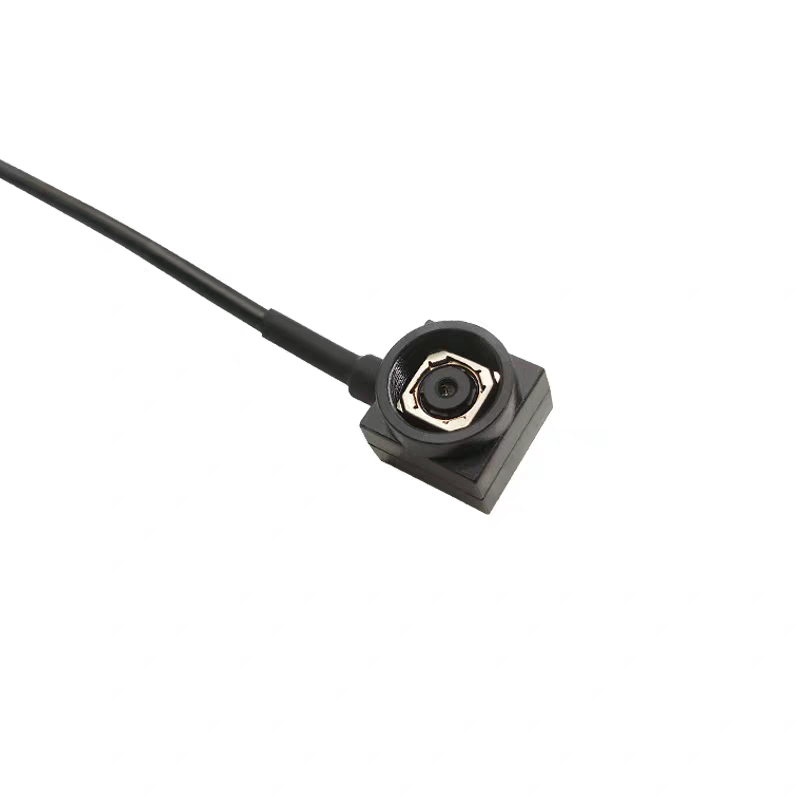

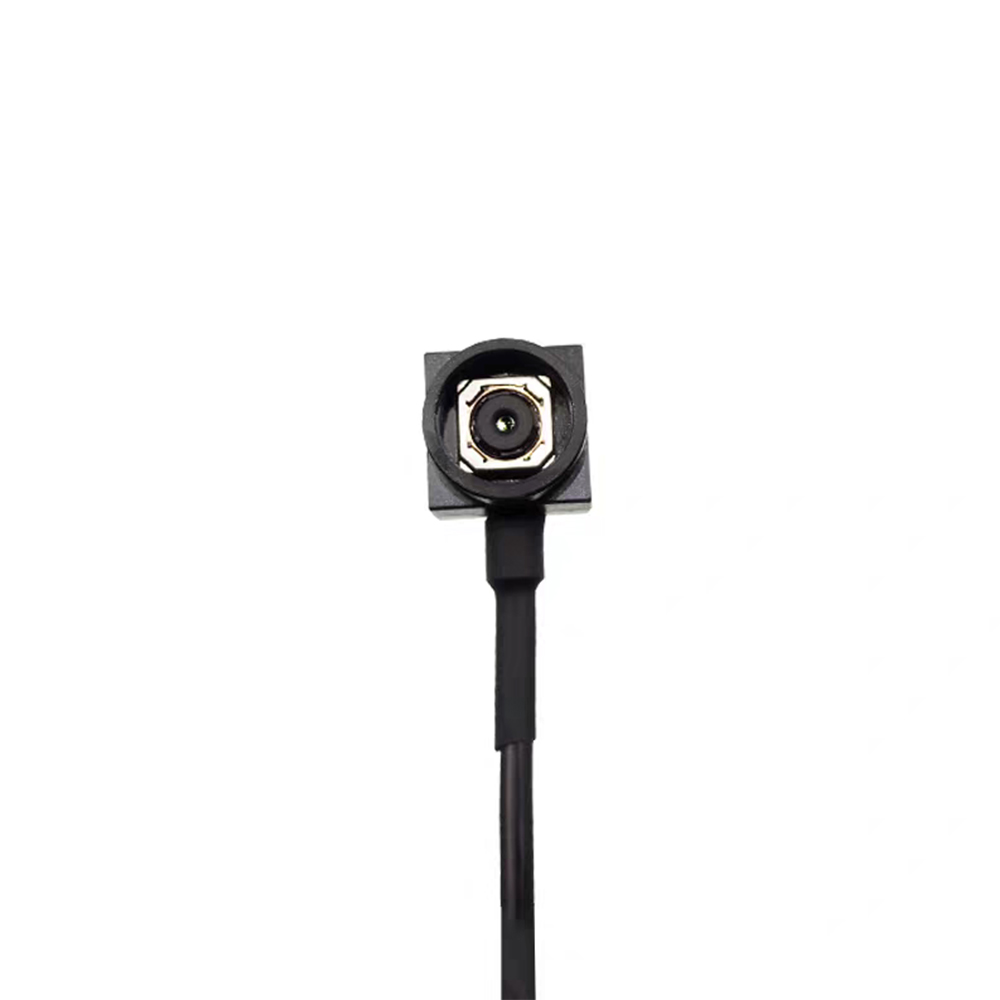

Super Mini Type-C USB Camera
2/5/8MP resolution for optional
1920*1080 @30FPS, 2MP WDR@60fps, 5MP@30fps, 8MP@15fps
3.6mm(STANDARD/No distortion lens, 2.1/2.5/2.8/4/6mm for optional
USB2.0/OTG/Type-C output for optional
Mjpeg/YUV2 image output
No-drive protocol
Application:
1. Inspecting industrial equipments
2. Assisting medical treatment
3. CCTV
4. Video teaching
5. Vehicle video applications
No Night Vision
Audio support
2m standard cable
DC5V
System Support:
WinXP/Vista/Win7/Win8;
Linux with UVC (above linux-2.6.26);
MAC-OS X 10.4.8 or later;
Wince with UVC;
Android 4.0 or above with UVC;
| Product Model | WDM-U16-M2 | WDM-U16-M2D | WDM-U16-M5D | WDM-U16-M8 |
| Resolution | 2MP | 2MP WDR | 5MP WDR | 8MP |
| Sensor | 1/2.9" GC2053 | 1/2.7" PS5268 | 1/2.7" PS5520 | Sony 1/3.2" IMX179 |
| Focus Type | FF/ MF(Manual Focus) | FF/MF | AF/ FF/ MF | FF/AF/MF |
| Lens Size | 3.6mm (Standard/No distortion lens，2.1/2.5/2.8/4/6mm for optional) | 3.6mm (Standard/No distortion lens, 2.1/2.5/2.8/4/6mm for optional) | 3.6mm (Standard/No distortion lens, 2.1/2.5/2.8/4/6mm for optional) | 3.6mm (Standard/No distortion lens, 2.1/2.5/2.8/4/6mm for optional) |
| Pixel Size | 2.8um x2.8um | 3.0um x3.0um | 2.2um x2.2um | 1.4um x1.4um |
| Max resolution | 1920(H)X1080(V) | 1920(H)X1080(V) | 2592(H) x 1944(V) | 3264(H)X2448(V) |
| Output image format | MJPEG /YUY2 | MJPEG /YUY2 | MJPEG /YUY2 | MJPEG /YUY2 |
| Frame Rate | 1920*1080@30fps;1280×720@30fps;640*480@30fps. | 1920*1080@30fps;1280×720@30fps;640*480@30fps.； | 5MP: 2592x1944 HDR @ 30fps 4MP: 2560x1440 HDR @ 30fps 2K2K:1944x1944 HDR @ 30fps 1080p:1920x1080 HDR @ 45fps | 3264X2448@15fps;2592X1944@15fps;2048X1536@15fps;1920x1080@30fps;1600x1200@30fps;1280x720@30fps;800x600@30fps;640x480@30fps. |
| Dynamic Range | / | 85dB | 85dB | / |
| USB Protocol | USB2.0(FS) | USB2.0(FS) | USB2.0(FS) | USB2.0(FS) |
| Support OTG Protocol | Support | Support | Support | Support |
| Support free drive protocol | USB Video Class(UVC) | USB Video Class(UVC) | USB Video Class(UVC) | USB Video Class(UVC) |
| Interface Type | USB2.0/OTG/Type-c | USB2.0/OTG/Type-c | USB2.0/OTG/Type-c | USB2.0/OTG/Type-c |
| Automatic Exposure Control (AEC) | Support | Support | Support | Support |
| AEB | Support | Support | Support | Support |
| AGC | Support | Support | Support | Support |
| Adjustable Parameter | Brightness, contrast, color saturation, hue clarity; Gamma White Balance Backlight Contrast Exposure | Brightness, contrast, color saturation, hue clarity; Gamma White Balance Backlight Contrast Exposure | Brightness, contrast, color saturation, hue clarity; Gamma White Balance Backlight Contrast Exposure | Brightness, contrast, color saturation, hue clarity; Gamma White Balance Backlight Contrast Exposure |
| Night Vision Function | No | No | No | No |
| Audio | Support | Support | Support | Support |
| Power Method | USB BUS | USB BUS | USB BUS | USB BUS |
| Working Voltage | DC 5V | DC 5V | DC 5V | DC 5V |
| Working current | 100mA±10% | 100mA±10% | 100mA±10% | 100mA±10% |
| Stable Image temperature | 0~60℃ | 0~60℃ | 0~60℃ | 0~60℃ |
| Operating temperature: | -20~80℃ | -20~75℃ | -30~75℃ | -20~75℃ |
| Cable Length: | 2m standard／3m or 5m for optional / Customized | 2m standard／3m or 5m for optional / Customized | 2m standard／3m or 5m for optional / Customized | 2m standard／3m or 5m for optional / Customized |
| Supported System: | WinXP/Vista/Win7/Win8;Linux with UVC (above linux-2.6.26);MAC-OS X 10.4.8 or later;Wince with UVC;Android 4.0 or above with UVC. | WinXP/Vista/Win7/Win8;Linux with UVC (above linux-2.6.26);MAC-OS X 10.4.8 or later;Wince with UVC;Android 4.0 or above with UVC. | WinXP/Vista/Win7/Win8;Linux with UVC (above linux-2.6.26);MAC-OS X 10.4.8 or later;Wince with UVC;Android 4.0 or above with UVC. | WinXP/Vista/Win7/Win8;Linux with UVC (above linux-2.6.26);MAC-OS X 10.4.8 or later;Wince with UVC;Android 4.0 or above with UVC. |
