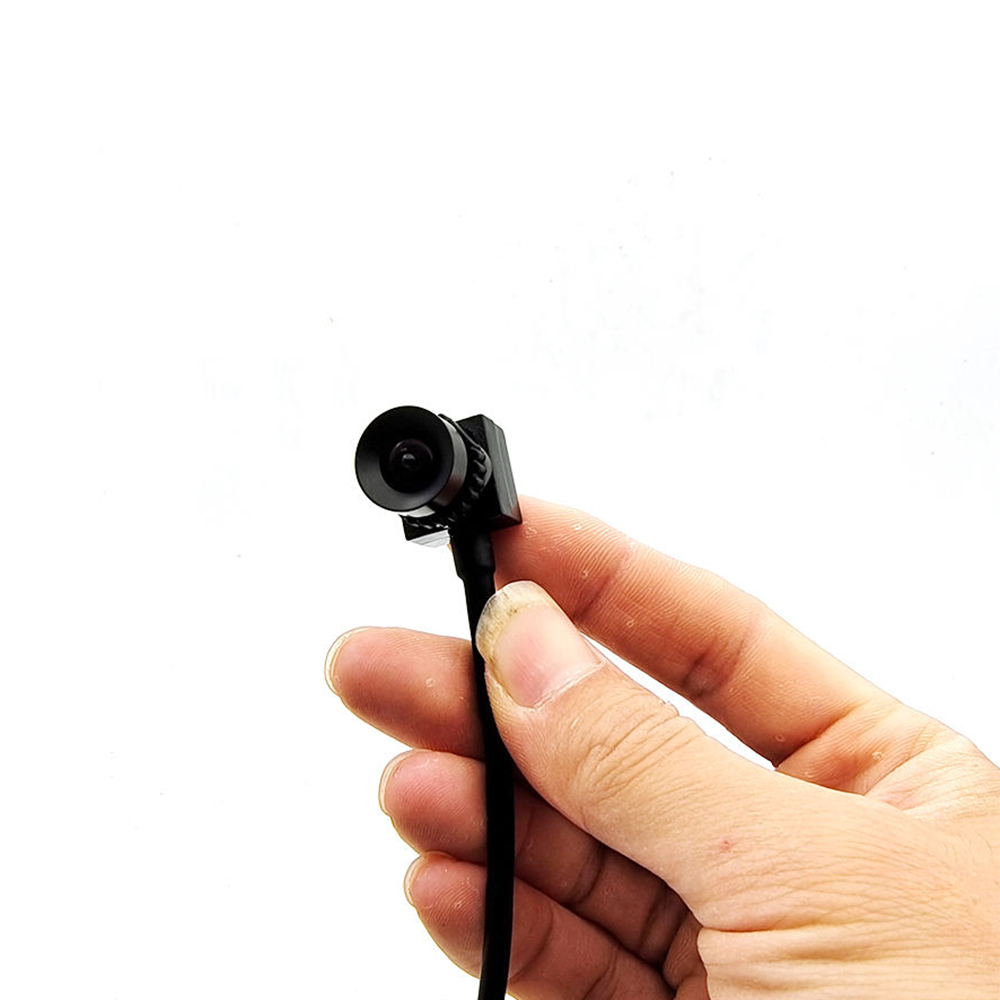

5MP WDR PS5520 12mm Super Mini USB Camera Backlight Place ATM UVC Type-C Camera

Features:

12mm Super Mini ATM UVC Type-C USB Camera

5MP WDR resolution

5MP@30fps

3.6mm(STANDARD/No distortion lens, 2.1/2.5/2.8/4/6mm for optional

USB2.0/OTG/Type-C output for optional

Mjpeg/YUV2 image output

No-drive protocol

Application: Face Recognition, Document Comparison, ATM Security Monitoring, Security Gate, Airport Security, Border Gate Checker, Intelligent Visualization, Backlight Place

Inquire Now Next Product

Features

Specifications

No Night Vision

Audio support, with microphone

2m standard cable

DC5V

System Support:

WinXP/Vista/Win7/Win8;

Linux with UVC (above linux-2.6.26);

MAC-OS X 10.4.8 or later;

Wince with UVC;

Android 4.0 or above with UVC;

Product Model	WDM-U16-M2	WDM-U16-M2D	WDM-U16-M5D
Resolution	2MP	2MP WDR	5MP WDR
Sensor	1/2.9" GC2053	1/2.7" PS5268	1/2.5” PS5520
Focus Type	FF	FF	FF
Lens Size	3.6mm (Standard/No distortion lens，2.1/2.5/2.8/4/6mm for optional)	3.6mm H=105° V=70° No distortion lens, (2.1/2.5/2.8/4/6mm for optional)	3.6mm H=105° V=70° No distortion lens, (2.1/2.5/2.8/4/6mm for optional)
Pixel Size	2.8um x2.8um	3.0um x3.0um	2.2um x2.2um
Max resolution	1920(H)X1080(V)	1920(H)X1080(V)	2592(H) x 1944(V)
Output image format	MJPEG /YUY2	MJPEG /YUY2	MJPEG /YUY2
Frame Rate	MJPG 1920X1080 @25fps;MJPG 1280X1024 @25fps;MJPG 1280X720 @25fps;MJPG 1024X768 @25fps;MJPG 800X600 @25fps;MJPG 640X480 @25fps;MJPG 640X480 @25fps;MJPG 352X288 @25fps;MJPG 320X240 @25fps;MJPG 160X120 @25fps;YUY2 1920X1080 @5fps;YUY2 1280X720 @10fps;YUY2 960X540 @20fps;YUY2 800X600 @25fps;YUY2 640X480 @25fps.	MJPG 1920X1080 @25fps;MJPG 1280X1024 @25fps;MJPG 1280X720 @25fps;MJPG 1024X768 @25fps;MJPG 800X600 @25fps;MJPG 640X480 @25fps;MJPG 640X480 @25fps;MJPG 352X288 @25fps;MJPG 320X240 @25fps;MJPG 160X120 @25fps;YUY2 1920X1080 @5fps;YUY2 1280X720 @10fps;YUY2 960X540 @20fps;YUY2 800X600 @25fps;YUY2 640X480 @25fps.	MJPG 2592x1944 @30fps;MJPG 2560x1440 @30fps; MJPG 2048X1536 @30fps;MJPG 1920X1080 @30fps;MJPG 1600X1200 @30fps;MJPG 1280X720 @30fps;MJPG 1024X768 @30fps;MJPG 800X600 @30fps;MJPG 640X480 @30fps;MJPG 640X400 @30fps;MJPG 640X360 @30fps;MJPG 320X240 @30fps;YUY2 2592X1944 @2fps;YUY2 1920X1080 @5fps;YUY2 1280X720 @5fps;YUY2 1024X768 @10fps;YUY2 800X600 @20fps;YUY2 640X400 @30fps;YUY2 640X360 @30fps;YUY2 320X240 @30fps;
Dynamic Range	/	85dB	85dB
USB Protocol	USB2.0(Full-Speed)	USB2.0 (Full-Speed)	USB2.0 (Full-Speed)
Support OTG Protocol	Support	Support	Support
Support free drive protocol	USB Video Class(UVC)	USB Video Class(UVC)	USB Video Class(UVC)
Interface Type	USB2.0/OTG/Type-c	USB2.0/OTG/Type-c	USB2.0/OTG/Type-c
Automatic Exposure Control (AEC)	Support	Support	Support
AEB	Support	Support	Support
AGC	Support	Support	Support
Adjustable Parameter	Brightness, contrast, hue, saturation, clarity;Gamma White Balance Backlight Compensation Gain Aperture Exposure	Brightness, contrast, color saturation, hue clarity; Gamma White Balance Backlight Contrast Exposure	Brightness, contrast, color saturation, hue clarity; Gamma White Balance Backlight Contrast Exposure
Night Vision Function	No	No	No
Audio	Support	with Microphone	with Microphone
Power Method	/dev/bus/usb/002/002	/dev/bus/usb/002/002	/dev/bus/usb/002/002
Working Voltage	DC 5V	DC 5V	DC 5V
Working current	<200mA	80mA±10%	80mA±10%
Stable Image temperature	0~60℃	0~60℃	0~60℃
Operating temperature:	-20~80℃	-20~75℃	-30~75℃
Motherboard Size:Packing Size:	1212mm 9767*55mm	1212mm 9767*55mm	1212mm 9767*55mm
Cable Length:	2m standard／3m or 5m for optional / Customized	2m standard／3m or 5m for optional / Customized	2m standard／3m or 5m for optional / Customized
Supported System:	WinXP/Vista/Win7/Win8;Linux with UVC (above linux-2.6.26);MAC-OS X 10.4.8 or later;Wince with UVC;Android 4.0 or above with UVC.	WinXP/Vista/Win7/Win8;Linux with UVC (above linux-2.6.26);MAC-OS X 10.4.8 or later;Wince with UVC;Android 4.0 or above with UVC.	WinXP/Vista/Win7/Win8;Linux with UVC (above linux-2.6.26);MAC-OS X 10.4.8 or later;Wince with UVC;Android 4.0 or above with UVC.
