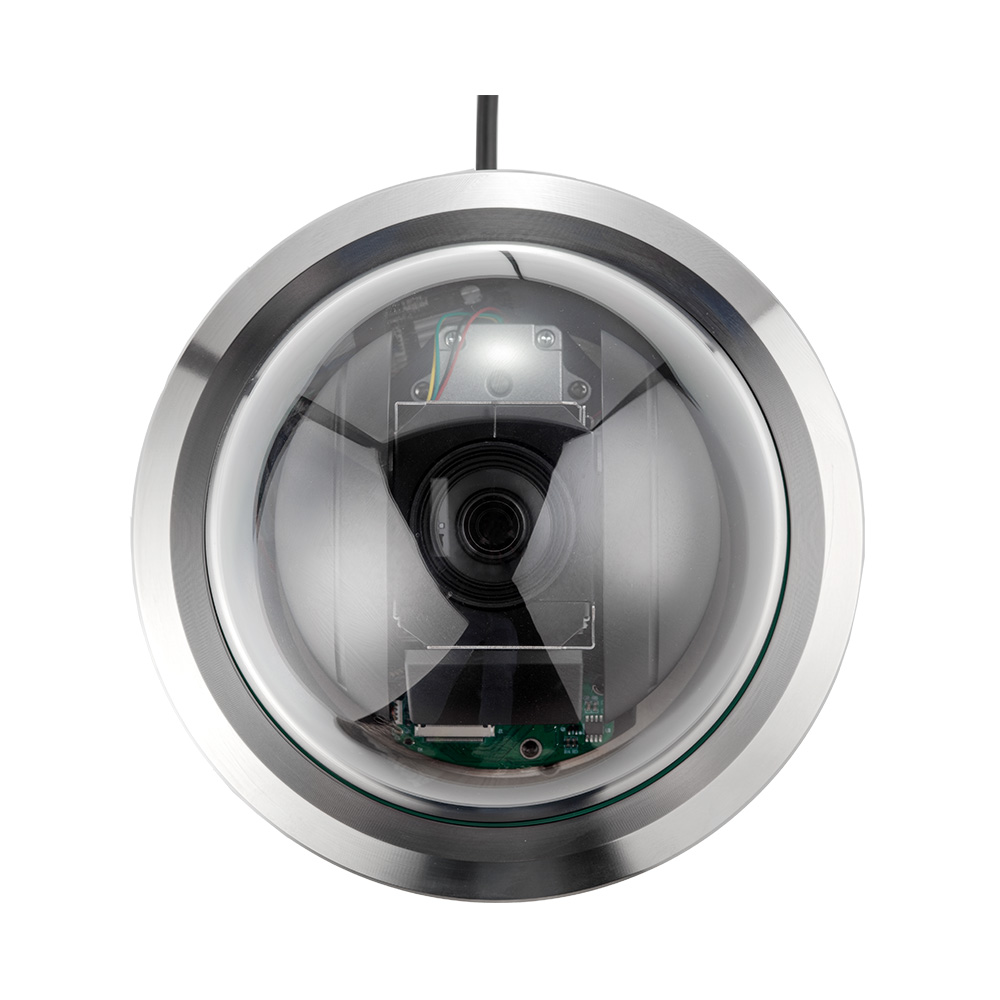

316L 5MP 20X Marine Port Security High Speed Dome PTZ IP Explosion-Proof Camera

316L 5MP 20X Marine Port Security High Speed Dome PTZ IP Explosion-Proof Camera

Features:

5MP High Resolution

High Speed Dome PTZ

20X Optical Zoom, (5.1-102mm)

Horizontal 0~360° rotation, Vertical 0-90°

Explosion-proof housing

316L stainless steel surface treated with fluorine- carbon spray. elegant structure. explosion proof, dust proof, water proof, rust-proof…

Main stream: 30fps (2592*1944, 1920 * 1080, 1280 * 960, 1280 * 720);

Optics class toughened ultra clear white explosion proof glass, flux rate higher than 96%, completely eliminate infrared light halos.

We can customize right camera size according to your requirement

IP66 Waterproof

Inquire Now Next Product

Features

Specifications

5.0Megapixel 1/2.8” CMOS
2592(H)×1944(V)
Not support night vision
Support PTZ, Onvif

Supports 255 preset positions and 8 cruise scans

316L Stainless Steel Camera Housing

Wall/ceilling hybrid braket mount

DC12V/POE

Specification
Product Name	316L 5MP 20X Marine Port Security High Speed Dome PTZ IP Explosion-Proof Camera
Model No.	WDM-EX500IPK20X/316L
Video
Sensor	5.0M Pixel 1/2.8” Progressive Scan CMOS
Output resolution	H.265/H.264/MJPEG, 2592(H)x1944(V)
Illumination	Color: 0.0005 Lux @ (F1.67, AGC ON); Black and White: 0.0001Lux @ (F1.67, AGC ON)
Scan Method	progressive scanning
Electronic shutter	1 / 25 seconds to 1 / 100000 seconds; support delayed shutter
Frame rate	5.0MP 30 frame (full real time)
Main Stream	25fps (25921944, 2688 x1520 ，1920 × 1080, 1280 × 960，1280 × 720); 30fps (25921944, 2688 x1520 ，1920 × 1080, 1280 × 960，1280 × 720)
Sub-Stream	25fps (1280×720 ,640x480 ,352x288) 30fps (1280×720, 640x480 ,352x240)
Third stream	25fps ( 704x576 ,640x480 ,352x288) 30fps ( 704x480 ,640x480 ,352x240)
Video compression bitrate	32 Kbps~16Mbps
Image Settings	Saturation, brightness, contrast, sharpness, gamma
Backlight Compensation	Support, customizable area
Exposure Mode	Auto exposure/aperture priority/shutter priority/manual exposure
Focused Mode	Auto focus/one-time focus/manual focus
Area Exposure/Focus	Support
Electronic fog transmission	Support
Day/Night Switch	ICR infrared filter; Automatic, manual, timed, serial port triggered, alarm triggered
3D Noise Reduction	Support
Night Vision
IR Distance	Not Support
Lens
Focal Length	20X Optical Zoom, (5.1-102mm)
Network
Protocols	TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,RTP,RTSP,RTCP,NTP,SMTP,SNMP,IPv6
Interface Protocol	ONVIF(PROFILE S,PROFILE G) ,GB28181-2016, Domestic mainstream protocols
Function
Function	Support WEB configuration, real-time video transmission
	Support mobile view, Android\iPhone
Pan Tilt
Rotation range	Horizontal 0~360° rotation, Vertical 0-90°
Rotation speed	Keyboard Control: Horizontal 0.1～30°/S, Vertical 0.1-15°/S
Presets	255
Housing Material
explosion-proof housing	316L stainless steel, polishing passivation treatment, Rust corrosion resistance, never fade
Ingress Protection	IP68
Method of installation	Bracket mount
Atex Mark	II 2G Ex db IIC T6 Gb, II 2D Ex tb IIIC(85 degree) Db
IEC Mark	Ex dIIC T6 Gb/DIP A20 TA, T6
Normal
Working Environment	-25℃~85℃
Power supply	DC12V/POE ±10%

WDM-EX500IPK20X:316L.pdf
