Features:
5MP High Resolution
2.8-12mm motirized 4X Zoom Lens
Explosion-proof housing
316L stainless steel surface treated with fluorine- carbon spray. elegant structure. explosion proof, dust proof, water proof, rust-proof…
Main stream: 15fps (2592*1944, 1920 * 1080, 1280 * 960, 1280 * 720);
Optics class toughened ultra clear white explosion proof glass, flux rate higher than 96%, completely eliminate infrared light halos.
We can customize right camera size according to your requirement
5MP Resolution, 1/2.7” CMOS
2592(H)×1944(V)
20-30m night vision distance (30pcs ir leds)
Support Onvif, motion detection
316L Stainless Steel Camera Housing
Wall/ceilling hybrid braket mount
DC12V/POE
| Specification | |

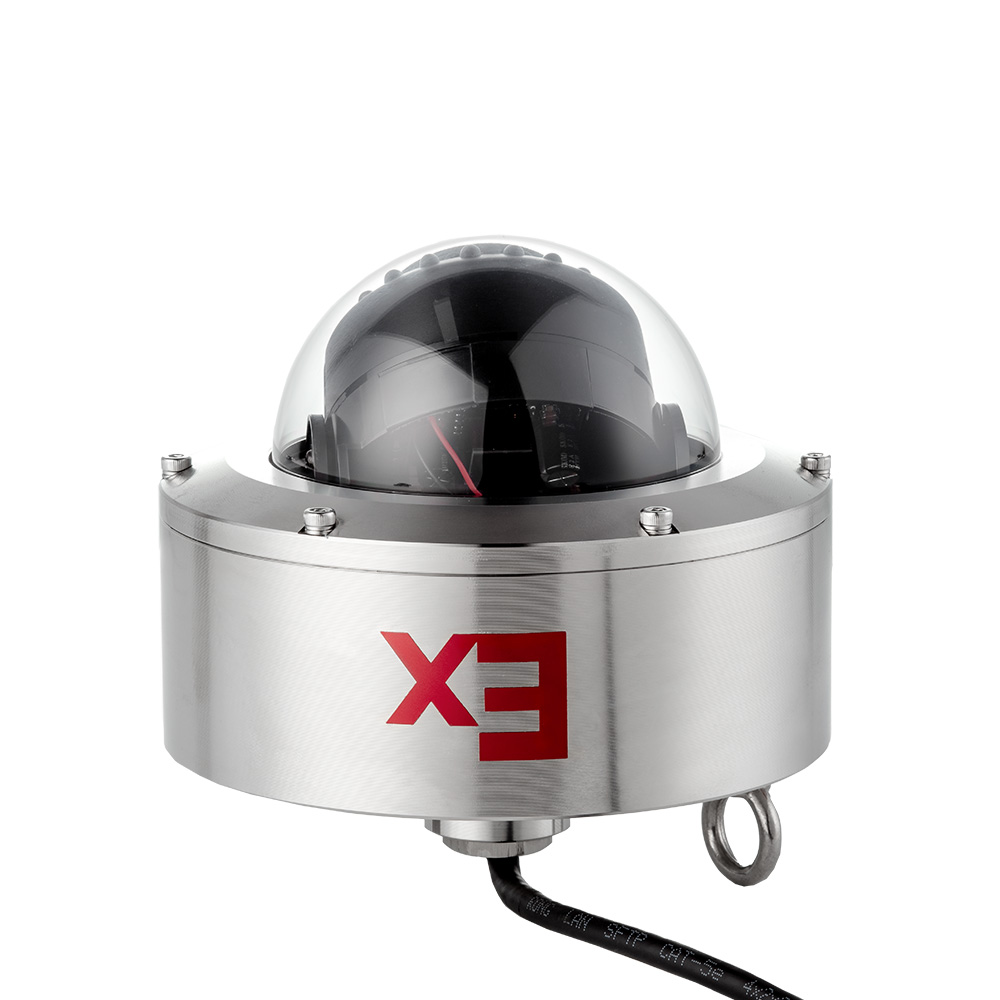

| Product Name | 5MP 4X Zoom 316L Stainless Steel Explosion-Proof IR Marine Engine Room Dome IP Camera |
| Model No. | WDM-EX500IPD/4X/316L |
| Video | |
| Sensor | 5.0M Pixel 1/2.7” CMOS Sensor |
| Output resolution | 2592(H)x1944(V) |
| D/N Mode | Auto switching,black and white vide and IR cut action linkage |
| Illumination | Color: 0.01Lux@F1.2; B/W: 0.001 Lux@F1.2 |
| SNR | ≥50dB(AGC OFF) |
| WDR | >80dB(DWR) |
| Video processing | H.265 video compression, dual streaming |
| AVI format, 0.1M~6Mpbs adjustable; | |
| Video Output | Main streaming: 2592X1944@15fps, 2560X1440@ 20fps, 1920*1080@25fps, support@1~25/30fps adjustable |
| Frame rate | 5.0MP 25/30 frame(full real time),support 1~30frame/seconds adjustable |
| Network interface | RJ45 ethernet,10/100M;RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP protocol supported |
| Access Protocol | Standard ONVIF Protocol, Support third party access; PC; |
| Support IE6.0 and aboveSmartphone | |
| Support Android\iPhone | |
| Lens | |
| Lens | 2.8-12mm Motorized 4X Zoom Lens |
| IR distance | 20-30m night vision distance (30pcs ir leds) |
| Function | |
| Function | Support WEB configuration, OSD,real-time video transmission |
| Support motion detection | |
| Support uniform client and platform system application | |
| Support complete SDK for second development. | |
| Housing Material | |
| explosion-proof housing | 316L stainless steel, polishing passivation treatment, Rust corrosion resistance, never fade |
| Ingress Protection | IP66 |
| Interface spec | G-1/2” |

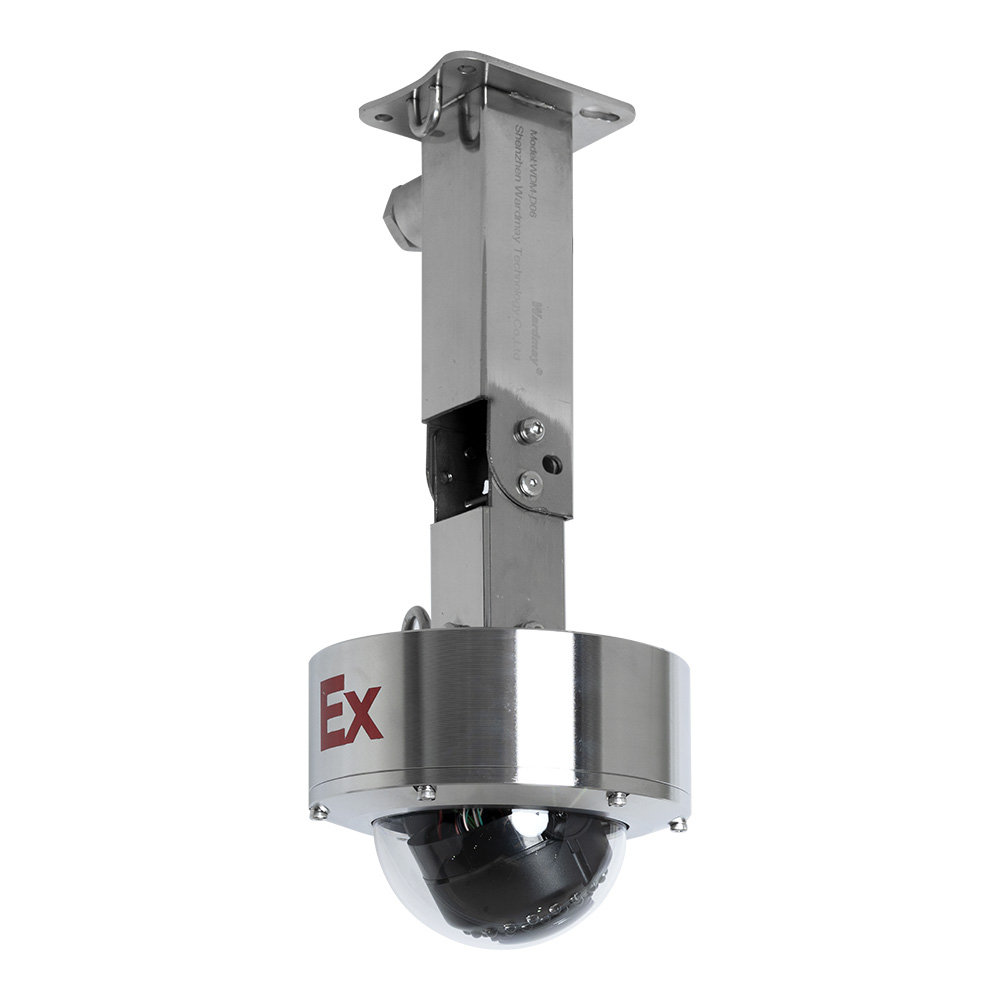

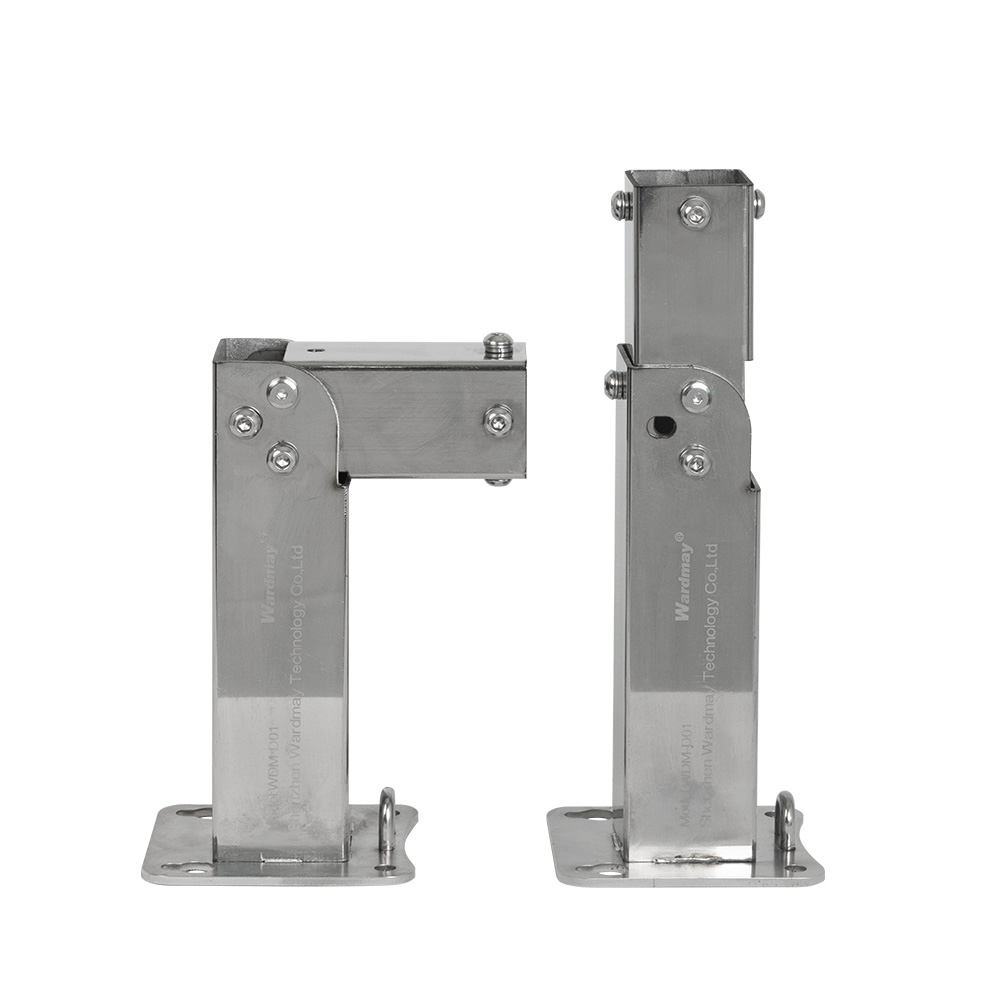

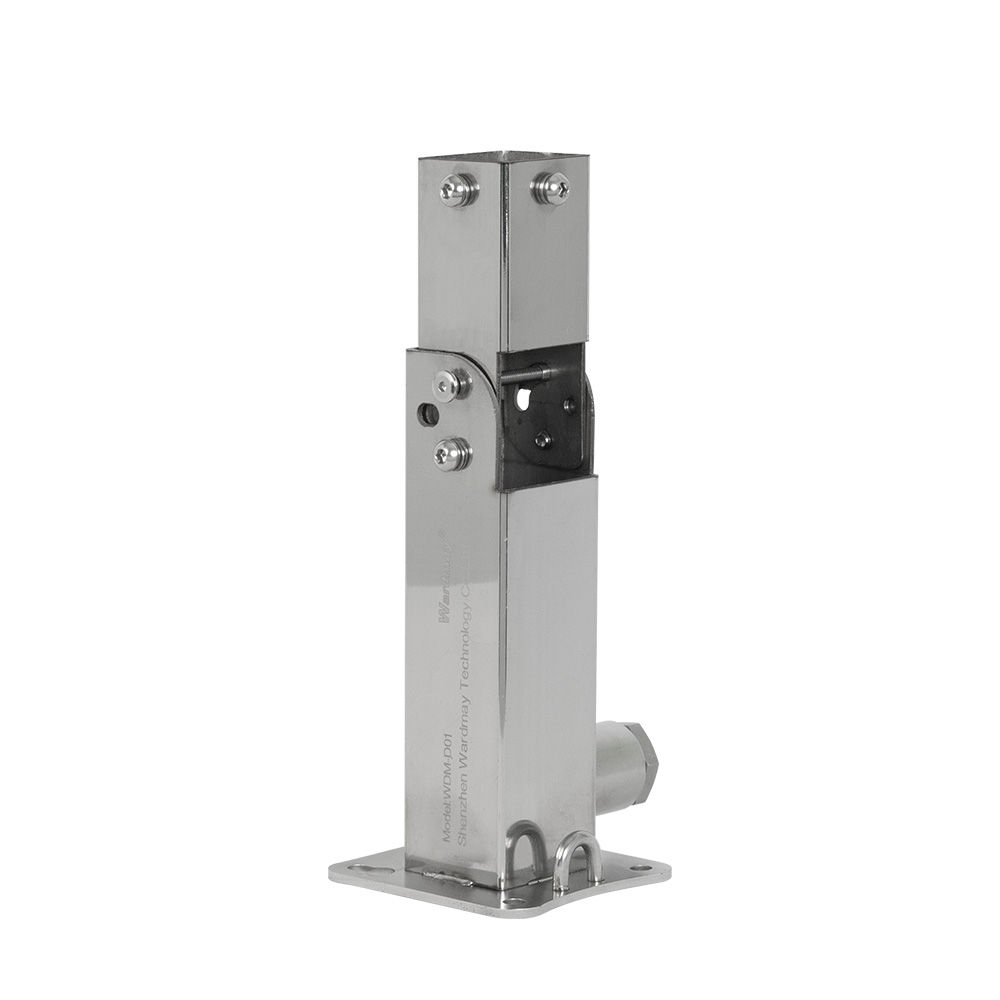

| Method of installation | wall/ceiling hybrid bracket mount |
| Atex Mark | II 2G Ex db IIC T6 Gb, II 2D Ex tb IIIC(85 degree) Db |
| IEC Mark | Ex dIIC T6 Gb/DIP A20 TA, T6 |
| Normal | |
| Power supply | DC12V/POE(optional) |
| Working Current | <=1A |
