Features:

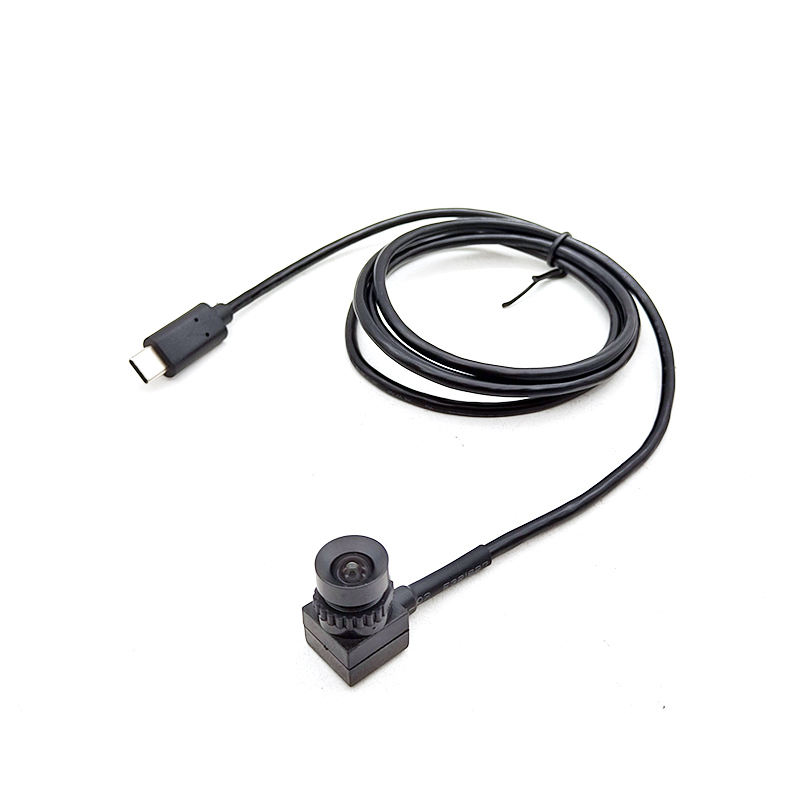

48MP Sony 1/2" IMX586 HD 7fps OTG/Type-C/USB Camera For Drone/UAV
48MP 4K resolution
MJPG 8000X6000@7fps
Support 850/940nm IR Leds
Fixed or Auto Focus Lens
USB2.0/OTG/Type-C output for optional
Mjpeg/YUV2 image output
No-drive protocol
Application:
1. Inspecting industrial equipments
2. Assisting medical treatment
3. CCTV
4. Video teaching
5. Vehicle video applications
and also widely used in Face Recognition, Document Comparison, ATM Security Monitoring, Security Gate, Airport Security, Border Gate Checker, Intelligent Visualization, Backlight Place.
Support Free drive protocol, UVC
Night Vision
Support audio, with microphone
2m standard cable
2P-2.0mm Socket
DC5V
System Support:
WinXP/Vista/Win7/Win8;
Linux with UVC (above linux-2.6.26)；
MAC-OS X 10.4.8 or later;
Wince with UVC;
Android 4.0 or above with UVC;
| Product Model | WDM-V2009B | WDM-V2009BD | WDM-V8009B | WDM-V48009B |
| Resolution | 2MP | 2MP WDR | 8MP | 48MP |
| Sensor | 1/2.9" GC2053 | 1/2.7" RX2719 | Sony 1/3.2" IMX179 | Sony 1/2" IMX586 |
| Focus Type | FF | FF | AF(Auto Focus)/FF(Fixed Focus) | AF(Auto Focus)/FF(Fixed Focus) |
| Lens Size | 3.6mm No distortion lens, (2.1/2.5/2.8/4/6mm for optional) | 3.6mm No distortion lens H=105° V=70°, (2.1/2.5/2.8/4/6mm for optional) | 3.9mm Auto Focus lens H=80° V=50°，(2.1/2.5/2.8/4/6mm for optional) | 3.9mm Auto Focus lens H=80° V=50°，(2.1/2.5/2.8/4/6mm for optional) |
| Pixel Size | 2.8um x2.8um | 3 um x3 um | 1.4um x1.4um | 0.8um x0.8um |
| Max resolution | 1920(H)X1080(V) | 1920(H)X1080(V) | 3264(H)X2448(V) | 8000(H)X6000(V) |
| Output image format | MJPEG /YUY2 | MJPEG /YUY2 | MJPEG /YUY2 | MJPEG /YUY2 |
| Frame Rate | MJPG 1920X1080 @25fps;MJPG 1280X1024 @25fps;MJPG 1280X720 @25fps;MJPG 1024X768 @25fps;MJPG 800X600 @25fps;MJPG 640X480 @25fps;MJPG 640X480 @25fps;MJPG 352X288 @25fps;MJPG 320X240 @25fps;MJPG 160X120 @25fps;YUY2 1920X1080 @5fps;YUY2 1280X720 @10fps;YUY2 960X540 @20fps;YUY2 800X600 @25fps;YUY2 640X480 @25fps; | MJPG 1920X1080 @25fps;MJPG 1280X1024 @25fps;MJPG 1280X720 @25fps;MJPG 1024X768 @25fps;MJPG 800X600 @25fps;MJPG 640X480 @25fps;MJPG 640X480 @25fps;MJPG 352X288 @25fps;MJPG 320X240 @25fps;MJPG 160X120 @25fps;YUY2 1920X1080 @5fps;YUY2 1280X720 @10fps;YUY2 960X540 @20fps;YUY2 800X600 @25fps;YUY2 640X480 @25fps; | MJPG 3264x2448 @15fps;MJPG 2592x1944 @15fps; MJPG 1920X1080 @30fps;MJPG 1600X1200 @30fps;MJPG 1280X720 @30fps;MJPG 960X540 @30fps;MJPG 848X480 @30fps;MJPG 640X480 @30fps;MJPG 640X360 @30fps;MJPG 424X240 @30fps;MJPG 320X240 @30fps;MJPG 320X180 @30fps;YUY2 3264x2448 @2fps;YUY2 2592X1944 @2fps;YUY2 1920X1080 @5fps;YUY2 640X480 @30fps;YUY2 320X240 @30fps; YUY2 320X180 @30fps. | MJPG 8000X6000@7fps;MJPG 4000X3000@20fps;MJPG 3840X2160@30fps;MJPG 2592x1944@30fps;MJPG 2048x1536@30fps;MJPG 1920x1080@30fps; MJPG 1280x720@30fps;MJPG 640x480@30fps;YUY2 1920x1080@30fps;YUY2 1280X720@30fps;YUY2 640x480@30fps. |
| Dynamic Range | / | 72 dB | / | / |
| USB Protocol | USB2.0(Full-Speed) | USB2.0(Full-Speed) | USB2.0(Full-Speed) | USB2.0(Full-Speed) |
| Support OTG Protocol | Support | Support | Support | Support |
| Support free drive protocol | USB Video Class(UVC) | USB Video Class(UVC) | USB Video Class(UVC) | USB Video Class(UVC) |
| Interface Type | USB2.0/OTG/Type-c | USB2.0/OTG/Type-c | USB2.0/OTG/Type-c | USB2.0/OTG/Type-c |
| Automatic Exposure Control (AEC) | Support | Support | Support | Support |
| AEB | Support | Support | Support | Support |
| AGC | Support | Support | Support | Support |
| Adjustable Parameter | Brightness, contrast, hue, saturation, clarity;Gamma White Balance Backlight Compensation Gain Aperture Exposure | Brightness, contrast, color saturation, hue clarity; Gamma White Balance Backlight Contrast Exposure | Brightness, contrast, hue, saturation, clarity;Gamma White Balance Backlight Compensation Gain Aperture Exposure | Brightness, contrast, color saturation, hue clarity; Gamma White Balance Backlight Contrast Exposure |
| Night Vision Function | Support 850/940nm IR Leds | Support 850/940nm IR Leds | Support 850/940nm IR Leds | Support 850/940nm IR Leds |
| Light board power supply interface | 2P-2.0mm Socket | 2P-2.0mm Socket | 2P-2.0mm Socket | 2P-2.0mm Socket |
| Audio | Support | Support | Support | Support |
| Power Method | dev/bus/usb/002/002 | dev/bus/usb/002/002 | dev/bus/usb/002/002 | dev/bus/usb/002/002 |
| Working Voltage | DC 5V | DC 5V | DC 5V | DC 5V |
| Working current | <200mA | <200mA | <200mA | <200mA |
| Stable Image temperature | 0~60℃ | 0~60℃ | 0~60℃ | 0~60℃ |
| Operating temperature: | -20~80℃ | -30~85℃ | -20~75℃ | -20~75℃ |
| Motherboard Size:Packing Size: | 38*38mm90*90*85mm | 38*38mm, (compatible 32*32mm)90*90*85mm | 38*38mm90*90*85mm | 38*38mm, (compatible 32*32mm) 90*90*85mm |
| Cable Length: | 2m standard／3m or 5m for optional / Customized | 2m standard／3m or 5m for optional / Customized | 2m standard／3m or 5m for optional / Customized | 2m standard／3m or 5m for optional / Customized |
| Supported System: | WinXP/Vista/Win7/Win8;Linux with UVC (above linux-2.6.26);MAC-OS X 10.4.8 or later;Wince with UVC;Android 4.0 or above with UVC. | WinXP/Vista/Win7/Win8;Linux with UVC (above linux-2.6.26);MAC-OS X 10.4.8 or later;Wince with UVC;Android 4.0 or above with UVC. | WinXP/Vista/Win7/Win8;Linux with UVC (above linux-2.6.26);MAC-OS X 10.4.8 or later;Wince with UVC;Android 4.0 or above with UVC. | WinXP/Vista/Win7/Win8;Linux with UVC (above linux-2.6.26);MAC-OS X 10.4.8 or later;Wince with UVC;Android 4.0 or above with UVC. |
